Portable Weighing Scale for Trucks
WS1101W-5
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
portable weighing scale for trucks, cas rw 15p, holi scale portable weighing scale for trucks, cas rw 15p, holi scaleportable weighing scale for trucks, cas rw 15p, holi scale portable weighing scale for trucks, cas rw 15p, holi scaleportable weighing scale for trucks, cas rw 15p, holi scale
Ningbo Saintbond Portable Weighing Scale for Trucks
Portable Weighing Scale for Trucks Solutions: Precision and Durability for Modern Transport
Efficiency and Control, Anywhere You Need It
Portable Weighing Scale for Trucks Solutions: Precision and Durability for Modern Transport
Efficiency and Control, Anywhere You Need It
WS1101 Portable Wheel Scales Dimension:mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Portable Wheel Scales Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101 Portable Wheel Scales Weighing Indicator: ( Optional )
| Cable Version | Wireless Version | |||
| Static | MWI01 |  | WI280 |  |
| MWI02 |  | WI680II |  | |
| Dynamic | MWI03 |  | WI380 |  |
In the dynamic world of transport and logistics, accurate weight control is synonymous with safety, profitability, and regulatory compliance. Ningbo Saintbond introduces its range of Portable Weighing Scale for Trucks, engineered to deliver maximum precision and durability in the most demanding conditions. Our scales are the ultimate solution for weighing trucks, heavy vehicles, and machinery directly at your chosen site.
WS1101 Portable Weighing Scale for Trucks Applications:
Axle Load Control: Verification of axle and tandem weights to ensure compliance with road regulations.
Construction Sites: Weighing mixer trucks, dump trucks, and heavy machinery.
Logistics & Warehouses: Weighing inbound and outbound cargo without the need for a fixed scale.
Agricultural Sector: Weighing harvests, fertilizers, and livestock.
Ports & Customs: Rapid and efficient inspection of containers and goods.
Axle Load Control: Verification of axle and tandem weights to ensure compliance with road regulations.
Construction Sites: Weighing mixer trucks, dump trucks, and heavy machinery.
Logistics & Warehouses: Weighing inbound and outbound cargo without the need for a fixed scale.
Agricultural Sector: Weighing harvests, fertilizers, and livestock.
Ports & Customs: Rapid and efficient inspection of containers and goods.
Why Choose Ningbo Saintbond Portable Weighing Scale for Trucks?
Certified Quality: Our products meet the most stringent international standards.
Advanced Technology: We invest in R&D to deliver market-leading products.
Global Technical Service: We offer specialized support and technical advice worldwide.
Unbeatable Value: We provide high-end solutions at a competitive price.
Certified Quality: Our products meet the most stringent international standards.
Advanced Technology: We invest in R&D to deliver market-leading products.
Global Technical Service: We offer specialized support and technical advice worldwide.
Unbeatable Value: We provide high-end solutions at a competitive price.
The Ningbo Saintbond Portable Weighing Scale for Trucks is more than just weighing equipment; it is a strategic tool for your business. Gain mobility, efficiency, and total control over your transport operations.

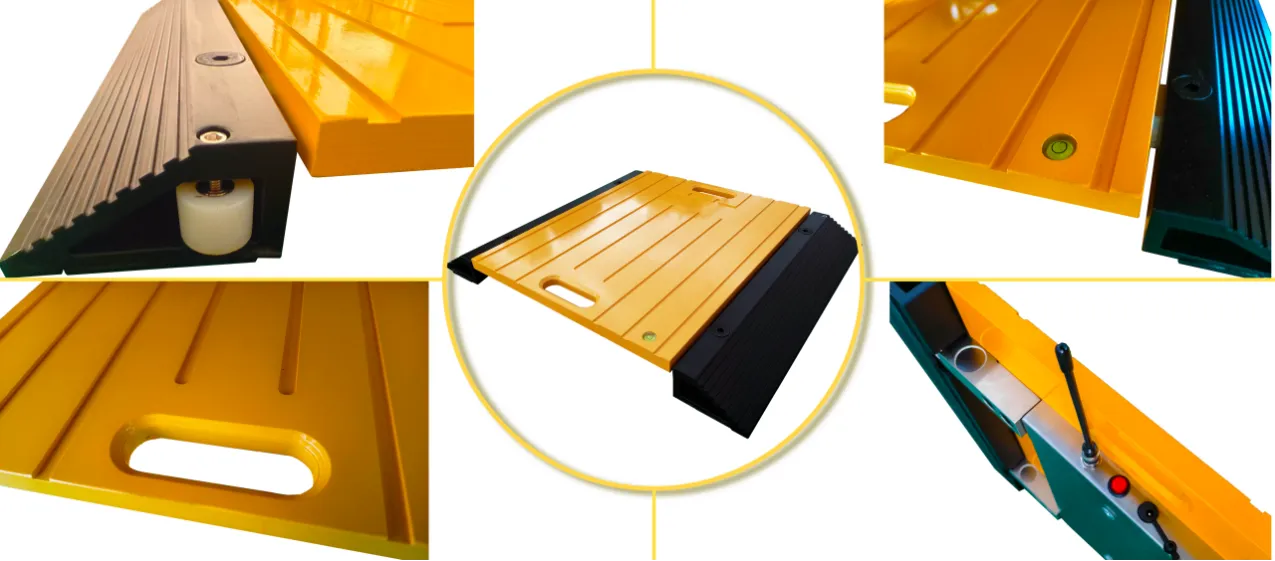

WS1101 Portable Wheel Scales Product Detail Informations:
