Portable Weighbridge
WS1101WD-3
Portable Weighbridge For Trucks: Revolutionize Your Weighing Operations with Unmatched Flexibility and Accuracy
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
single axle weighbridge ,portable weighbridge , portable weighbridge for trucks single axle weighbridge ,portable weighbridge , portable weighbridge for trucks single axle weighbridge ,portable weighbridge , portable weighbridge for trucks single axle weighbridge ,portable weighbridge , portable weighbridge for trucks single axle weighbridge ,portable weighbridge , portable weighbridge for trucks
Portable Weighbridge For Trucks: Revolutionize Your Weighing Operations with Unmatched Flexibility and Accuracy
Portable Weighbridge For Trucks: Revolutionize Your Weighing Operations with Unmatched Flexibility and Accuracy
In today's fast-paced industrial and logistical environments, efficiency and adaptability are paramount. Our Portable Weighbridge for trucks is engineered to deliver professional-grade weighing solutions wherever and whenever you need them. Say goodbye to the limitations and high costs of permanent installations.
A portable weighbridge for trucks is a fully functional, modular scale system that can be rapidly deployed, relocated, and reconfigured to meet the dynamic demands of your business.

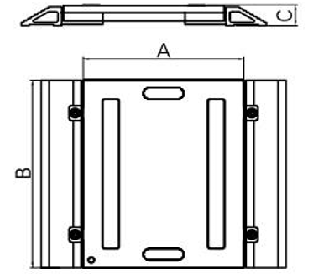

WS1101 Single Axle Weighbridge Dimension: mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Single Axle Weighbridge Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101 Single Axle Weighbridge Weighing Indicator: (Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | System non-linearity ＜0.01%; | |
| Battery Life: | ≥50 hours | Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
Who Needs a Portable Weighbridge For Trucks?
Our portable weighbridges are the perfect solution for a wide range of industries:
Logistics & Freight: For verifying container weights and ensuring compliance with road regulations.
Construction & Quarries: For weighing aggregates, sand, asphalt, and construction vehicles on temporary sites.
Agriculture & Farming: For weighing grain, livestock feed, and harvest yields.
Waste & Recycling: For monitoring incoming and outgoing waste materials.
Mining: For payload management of vehicles in remote mining operations.
Military & Government: For rapid deployment in field operations and logistics.
Any Business with Temporary or Fluctuating Weighing Needs.
Our portable weighbridges are the perfect solution for a wide range of industries:
Logistics & Freight: For verifying container weights and ensuring compliance with road regulations.
Construction & Quarries: For weighing aggregates, sand, asphalt, and construction vehicles on temporary sites.
Agriculture & Farming: For weighing grain, livestock feed, and harvest yields.
Waste & Recycling: For monitoring incoming and outgoing waste materials.
Mining: For payload management of vehicles in remote mining operations.
Military & Government: For rapid deployment in field operations and logistics.
Any Business with Temporary or Fluctuating Weighing Needs.
How Portable Weighbridge For Trucks Works?
Site Selection: Choose a firm, level piece of ground (e.g., asphalt or compacted gravel).
Assemble Modules: Interlock the modular sections to form a solid platform.
Connect & Calibrate: Link the platform to the digital indicator and perform a quick calibration.
Start Weighing: Drive vehicles on and get instant, accurate weight data.
Site Selection: Choose a firm, level piece of ground (e.g., asphalt or compacted gravel).
Assemble Modules: Interlock the modular sections to form a solid platform.
Connect & Calibrate: Link the platform to the digital indicator and perform a quick calibration.
Start Weighing: Drive vehicles on and get instant, accurate weight data.
Why Choose Our Portable Weighbridge For Trucks?
Proven Durability: Engineered for the toughest conditions.
Comprehensive Support: From installation and training to ongoing maintenance.
Customizable Solutions: We tailor the size, capacity, and features to your specific requirements.
Future-Proof Investment: A scalable solution that grows and moves with your business.
Proven Durability: Engineered for the toughest conditions.
Comprehensive Support: From installation and training to ongoing maintenance.
Customizable Solutions: We tailor the size, capacity, and features to your specific requirements.
Future-Proof Investment: A scalable solution that grows and moves with your business.
