Portable Vehicle Weight Scale
WS1101C-9
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW / FOB
minimum order
1 pair
Supply Ability
20000pair / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
portable truck scale rental, portable weight scales for trucks, portable vehicle weight scale Portable Vehicle Weight Scales portable truck scale rental, portable weight scales for trucks, portable vehicle weight scale Portable Vehicle Weight Scalesportable truck scale rental, portable weight scales for trucks,
Ningbo Saintbond: Leading Manufacturer of Portable Vehicle Weight Scales / portable weight scales for trucks
Factory-Direct, Precision Weighing Solutions for Modern Transport & Logistics
Factory-Direct, Precision Weighing Solutions for Modern Transport & Logistics
Ningbo Saintbond is a premier Chinese manufacturer specializing in the design and production of advanced, industrial-grade portable weight scales for trucks weighing solutions. We are dedicated to engineering high-precision, durable, and reliable portable vehicle weight scales that deliver critical weight data for logistics, freight management, axle load compliance, and warehouse operations.
Our portable weight scales for trucks systems enable rapid and efficient weighing of vehicles and their axles directly on-site, eliminating the need for expensive, permanent pit installations.
WS1101 Portable Vehicle Weight Scales Dimension:mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Portable Vehicle Weight Scales Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |

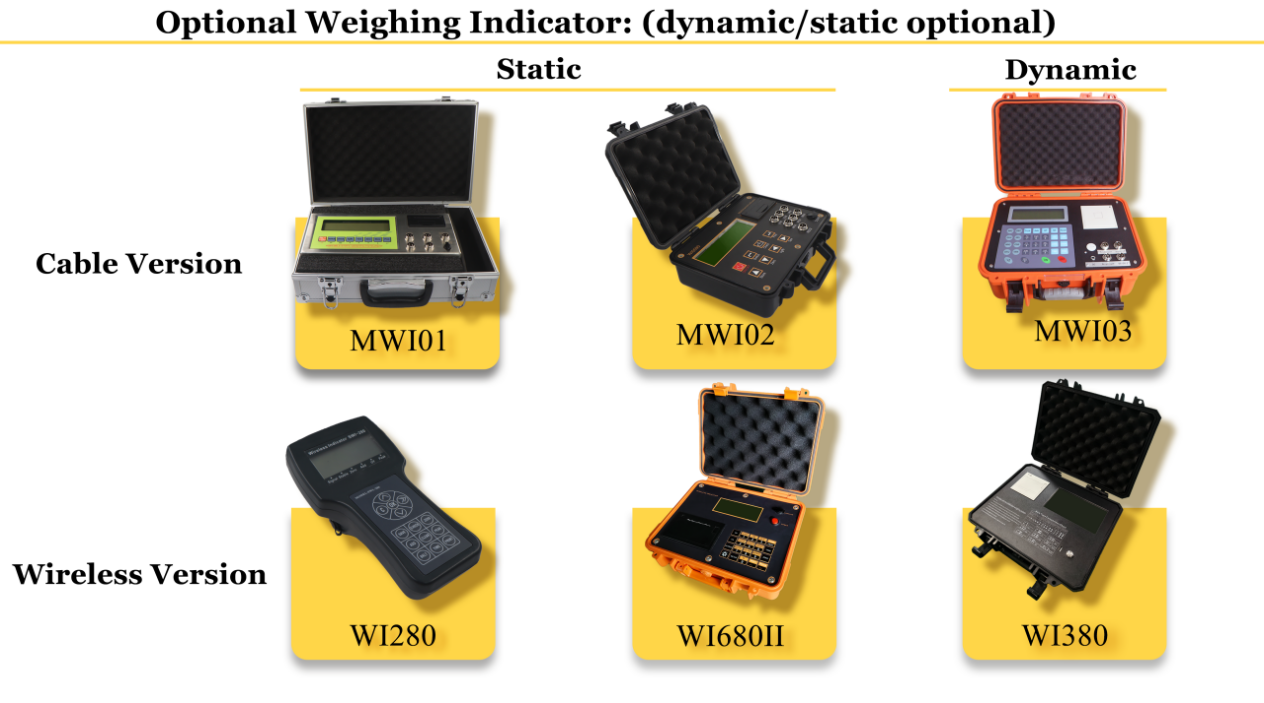

WS1101 Portable Vehicle Weight Scales Optional Weighing Indicator:
WS1101 Portable Vehicle Weight Scales Application Scenarios:
Axle Load Control: Verify axle and gross vehicle weights to comply with road transportation laws, avoiding fines and road damage.
Logistics & Warehousing: Quickly and efficiently determine cargo weight during loading and unloading.
Construction Sector: Weighing heavy machinery, concrete mixers, and construction vehicles.
Agriculture & Farming: Weighing trucks loaded with harvests, grain, or livestock.
Ports & Customs: Rapid inspection of containers and cargo.
Axle Load Control: Verify axle and gross vehicle weights to comply with road transportation laws, avoiding fines and road damage.
Logistics & Warehousing: Quickly and efficiently determine cargo weight during loading and unloading.
Construction Sector: Weighing heavy machinery, concrete mixers, and construction vehicles.
Agriculture & Farming: Weighing trucks loaded with harvests, grain, or livestock.
Ports & Customs: Rapid inspection of containers and cargo.
Why Choose Ningbo Saintbond portable weight scales for trucks?
Direct Factory Source: We offer competitive pricing and strict, direct quality control over the entire manufacturing process.
OEM/ODM Services: We customize products to your specifications, logo, and market needs.
Rigorous Quality Control: Every product undergoes exhaustive calibration and durability testing before shipment.
International Certifications: Our products are CE certified and widely exported globally.
Professional Support: We provide comprehensive technical support, English manuals, and after-sales service.
Direct Factory Source: We offer competitive pricing and strict, direct quality control over the entire manufacturing process.
OEM/ODM Services: We customize products to your specifications, logo, and market needs.
Rigorous Quality Control: Every product undergoes exhaustive calibration and durability testing before shipment.
International Certifications: Our products are CE certified and widely exported globally.
Professional Support: We provide comprehensive technical support, English manuals, and after-sales service.
Contact Us today for a quotation and more information!
Ningbo Saintbond:Your Trusted Partner in Portable Weighing Solutions.

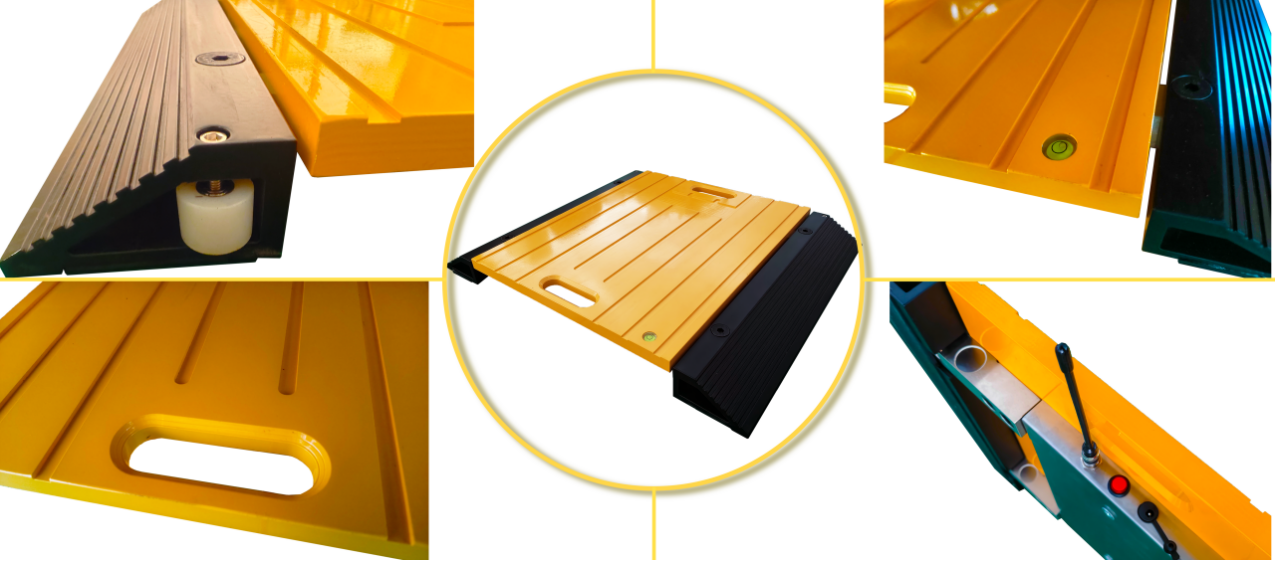

WS1101 Portable Vehicle Weight Scales Product Details:
