Portable Vehicle Weighing Scales
WS1110WD-4
Portable Vehicle Weighing Scales / wheel scales: Revolutionize Your Weighing Operations with Unmatched Portability and Precision
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
portable vehicle weighing scales, vehicle weighing scales, wheel scales portable vehicle weighing scales, vehicle weighing scales, wheel scales portable vehicle weighing scales, vehicle weighing scales, wheel scales portable vehicle weighing scales, vehicle weighing scales, wheel scales portable vehicle weighing scales, vehicle weighing scales, wheel scales portable vehicle weighing scales, vehicle weighing scales, wheel scales
Portable Vehicle Weighing Scales / wheel scales: Revolutionize Your Weighing Operations with Unmatched Portability and Precision
Portable Vehicle Weighing Scales are a groundbreaking weighing solution designed for professionals who require accurate axle, wheel, and total vehicle weight measurements anywhere, anytime. Unlike traditional, fixed weighbridges, our scales offer the ultimate flexibility, allowing you to turn any solid, level surface into an instant weighing station. They are the essential tool for ensuring regulatory compliance, optimizing load distribution, and maximizing operational efficiency across various industries.

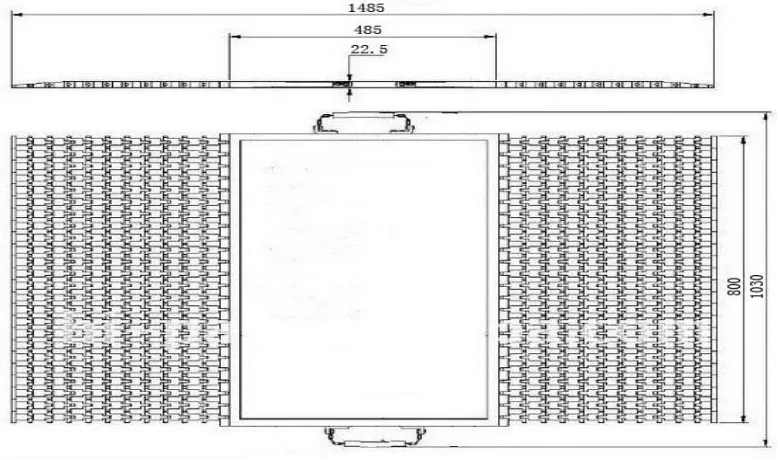

WS1110 Portable Vehicle Weighing Scales Dimension:mm
WS1110 Portable Vehicle Weighing Scales Technical Parameter:
| Rated load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic error (%F.S): 3~5 (5~10km/h) | Static error (%F.S):0.3~0.5 |
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended voltage(V): 10 | Defend grade: IP66 |
| Dynamic comprehensive error(%F.S): 3~5 (5~10km/h) | |
WS1110 Portable Vehicle Weighing Scales Weighing Indicator: ( Optional）
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | System non-linearity ＜0.01%; | |
| Battery Life: | ≥50 hours | Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
WS1110 Wheel Scales Core Applications (Who Needs This?)
Logistics & Trucking Companies: Ensure compliance with legal axle weight limits to avoid fines and prevent road damage.
Agriculture & Farming: Weigh harvest loads, livestock feed, and optimize tractor/trailer loads directly on the farm.
Construction & Quarrying: Manage payloads for dump trucks, excavators, and material deliveries to maximize efficiency and billing accuracy.
Waste Management & Recycling: Verify load weights for garbage trucks and recycling collection vehicles.
Military & Emergency Services: Rapid deployment for weighing vehicles and equipment in field operations.
Vehicle Manufacturing & Testing: For R&D and quality control processes.
Logistics & Trucking Companies: Ensure compliance with legal axle weight limits to avoid fines and prevent road damage.
Agriculture & Farming: Weigh harvest loads, livestock feed, and optimize tractor/trailer loads directly on the farm.
Construction & Quarrying: Manage payloads for dump trucks, excavators, and material deliveries to maximize efficiency and billing accuracy.
Waste Management & Recycling: Verify load weights for garbage trucks and recycling collection vehicles.
Military & Emergency Services: Rapid deployment for weighing vehicles and equipment in field operations.
Vehicle Manufacturing & Testing: For R&D and quality control processes.
How WS1110 Wheel Scales Works (The Process)
Position:Place the Wheel Scales on a firm, level surface (e.g., asphalt, concrete).
Connect: Link the scales to the digital indicator via cables or wirelessly.
Drive On: Slowly drive the vehicle's axle(s) onto the scales.
Read:View the axle weight on the indicator. The system can automatically sum the weights from all connected scales to display the Gross Vehicle Weight.
Drive Off & Move: Once done, simply drive off, disconnect, and move the system to the next location.
Position:Place the Wheel Scales on a firm, level surface (e.g., asphalt, concrete).
Connect: Link the scales to the digital indicator via cables or wirelessly.
Drive On: Slowly drive the vehicle's axle(s) onto the scales.
Read:View the axle weight on the indicator. The system can automatically sum the weights from all connected scales to display the Gross Vehicle Weight.
Drive Off & Move: Once done, simply drive off, disconnect, and move the system to the next location.
Choose Precision. Choose Portability. Choose Efficiency.
Contact us today to find the perfect portable weighing solution for your business!

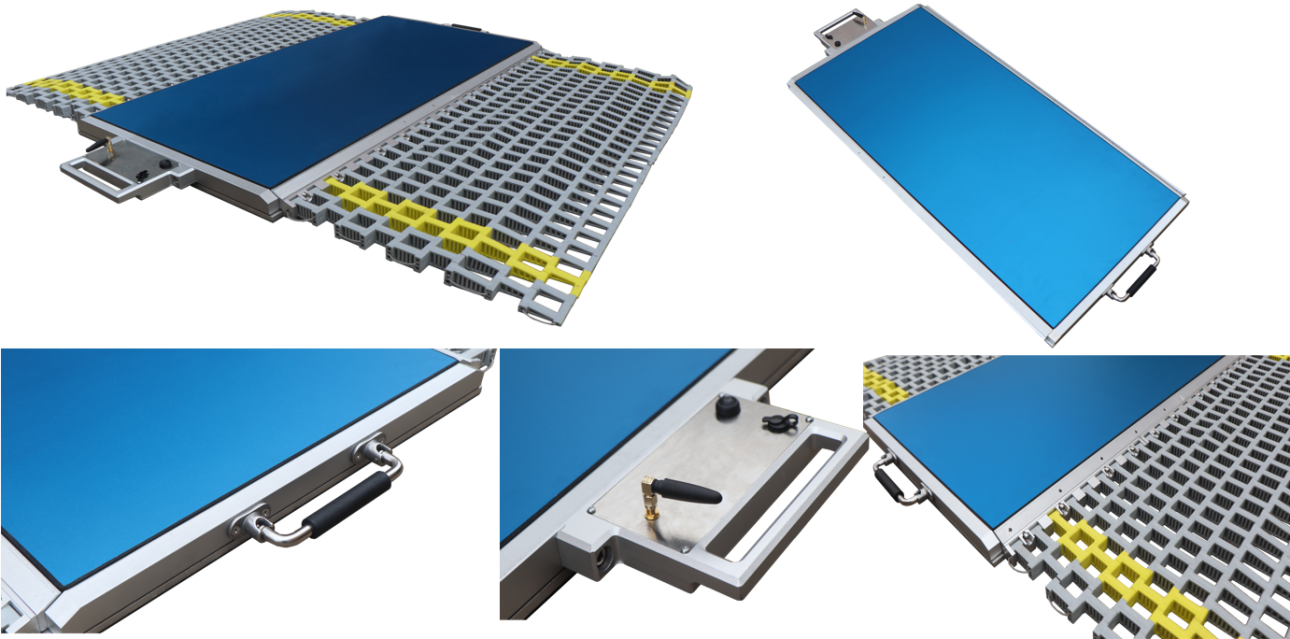

WS1110 Wheel Scales Product Detail Informations:
