Portable Truck Weighing Scale
WS110W-2
Portable Truck Weighing Scales: Accurate. Mobile. Efficient.
Weigh Anywhere, Anytime with Unmatched Flexibility
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Weigh Anywhere, Anytime with Unmatched Flexibility
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
portable truck weighing scale, portable truck weighing scales, op 928 portable truck weighing scale, portable truck weighing scales, op 928 portable truck weighing scale, portable truck weighing scales, op 928 portable truck weighing scale, portable truck weighing scales, op 928 portable truck weighing scale, portable truck weighing scales, op 928 portable truck weighing scale, portable truck weighing scales, op 928
Portable Truck Weighing Scales: Accurate. Mobile. Efficient.
Weigh Anywhere, Anytime with Unmatched Flexibility
Weigh Anywhere, Anytime with Unmatched Flexibility
Tired of the high cost and permanent commitment of a static weighbridge? Our Portable Truck Weighing Scales are the modern, flexible solution for fast and accurate axle and gross vehicle weight measurements. Designed for rapid deployment on any solid, flat surface, they are the ultimate tool for temporary sites, logistics hubs, farms, and regulatory enforcement.

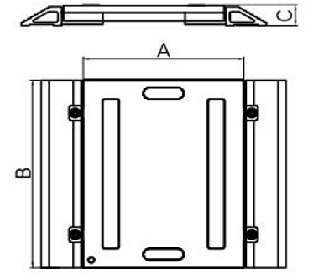

WS1101 Portable Truck Weighing Scales Dimension: mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Portable Truck Weighing Scales Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101 Portable Truck Weighing Scales Weighing Indicator: ( Optional )
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | System non-linearity ＜0.01%; | |
| Battery Life: | ≥50 hours | Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
Why Choose Our Portable Scales?
Maximize Efficiency & ROI: Drastically reduce weighing times and vehicle queues. Move the scales between projects to maximize utilization.
Ensure Compliance & Avoid Fines: Prevent costly overload fines and protect your vehicles and infrastructure from damage with precise weight data.
Gain Operational Insight: Make smarter decisions with real-time data to optimize loads, improve logistics planning, and reduce operational costs.
Maximize Efficiency & ROI: Drastically reduce weighing times and vehicle queues. Move the scales between projects to maximize utilization.
Ensure Compliance & Avoid Fines: Prevent costly overload fines and protect your vehicles and infrastructure from damage with precise weight data.
Gain Operational Insight: Make smarter decisions with real-time data to optimize loads, improve logistics planning, and reduce operational costs.
Invest in the weighing solution that moves with your business. Portable Truck Weighing Scales from Ningbo Saintbond are synonymous with agility, accuracy, and profitability.
Contact us today for a personalized quote and discover how we canoptimize your weighing operations.
