Portable Scales for Trucks
WS1101C-8
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW / FOB
minimum order
1 pair
Supply Ability
20000pair / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
portable weighing pads, portable scales for trucks, mobile vehicle weighing scales portable weighing pads, portable scales for trucks, mobile vehicle weighing scales portable weighing pads, portable scales for trucks, mobile vehicle weighing scales
Ningbo Saintbond Portable Weighing Pads / mobile vehicle weighing scales
Factory Direct. Precision Weighing. Anywhere.
Factory Direct. Precision Weighing. Anywhere.
Ningbo Saintbond is a leading manufacturer of high-precision, industrial-grade portable weighing pads and mobile vehicle weighing scales. Designed for durability, accuracy, and ultimate convenience, our solutions are trusted worldwide for logistics, warehousing, freight, and inventory management.
We offer a comprehensive range of portable scales for trucks to meet diverse weighing needs, from individual pallets to heavy-duty industrial axles.
WS1101 Portable Weighing Pads Dimension:mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Portable Weighing Pads Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |

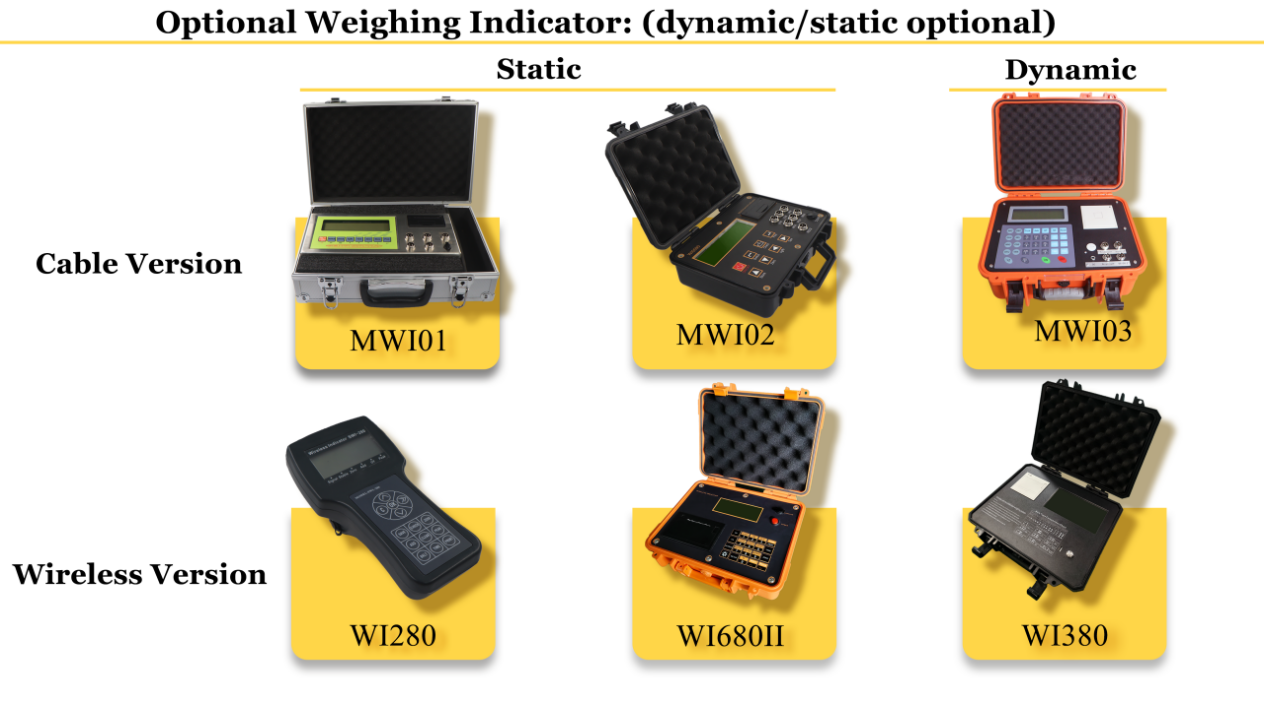

WS1101 Portable Weighing Pads Optional Weighing Indicator:
WS1101 Portable Weighing Pads Our Core Product Series:
Portable Pallet Weighing Pads: Ideal for warehouse logistics, inventory control, and shipping departments.
Capacity:500 / 1,000 / 1,500 / 2,000/ 3000/ 5000/ 10000/15000/ 20000kg /per pad
Platform Size: Standard 300x400mm, 400x500mm,450x700mm, 500x900mm and custom sizes available.
Features:
þLow-profile design for easy pallet jack access.
þRobust steel construction with anti-slip surface.
þWater and dust-resistant for demanding environments.
Portable Pallet Weighing Pads: Ideal for warehouse logistics, inventory control, and shipping departments.
Capacity:500 / 1,000 / 1,500 / 2,000/ 3000/ 5000/ 10000/15000/ 20000kg /per pad
Platform Size: Standard 300x400mm, 400x500mm,450x700mm, 500x900mm and custom sizes available.
Features:
þLow-profile design for easy pallet jack access.
þRobust steel construction with anti-slip surface.
þWater and dust-resistant for demanding environments.
WS1101 Portable Weighing Pads Application Scenarios:
Warehouse & Logistics: Pallet weighing, inventory management, and outbound shipment verification.
Freight & Transportation: Axle load checking for truck safety and legal compliance (to prevent overloading).
Manufacturing & Industry: Weighing raw materials, finished goods, and in-process components.
Agriculture & Livestock: Weighing produce, feed, and animals.
Retail & E-commerce: Efficient parcel and mail weighing.
Aviation & Marine: Weighing cargo, luggage, and equipment.
Warehouse & Logistics: Pallet weighing, inventory management, and outbound shipment verification.
Freight & Transportation: Axle load checking for truck safety and legal compliance (to prevent overloading).
Manufacturing & Industry: Weighing raw materials, finished goods, and in-process components.
Agriculture & Livestock: Weighing produce, feed, and animals.
Retail & E-commerce: Efficient parcel and mail weighing.
Aviation & Marine: Weighing cargo, luggage, and equipment.
Why Choose Ningbo Saintbond Portable Weighing Pads?
OEM/ODM Services: We offer custom branding, private labeling, and product customization to meet your specific market needs.
Strict Quality Control: Every scale is rigorously tested and calibrated before leaving our factory.
Competitive Pricing: As a direct manufacturer, we provide high-quality products at factory prices.
Global Export Experience: Our products are CE certified and comply with international standards, ready for export worldwide.
Professional Support: Our team provides comprehensive technical support and after-sales service.
OEM/ODM Services: We offer custom branding, private labeling, and product customization to meet your specific market needs.
Strict Quality Control: Every scale is rigorously tested and calibrated before leaving our factory.
Competitive Pricing: As a direct manufacturer, we provide high-quality products at factory prices.
Global Export Experience: Our products are CE certified and comply with international standards, ready for export worldwide.
Professional Support: Our team provides comprehensive technical support and after-sales service.
Ningbo Saintbond :Your Trusted Partner in Portable Weighing Solutions.

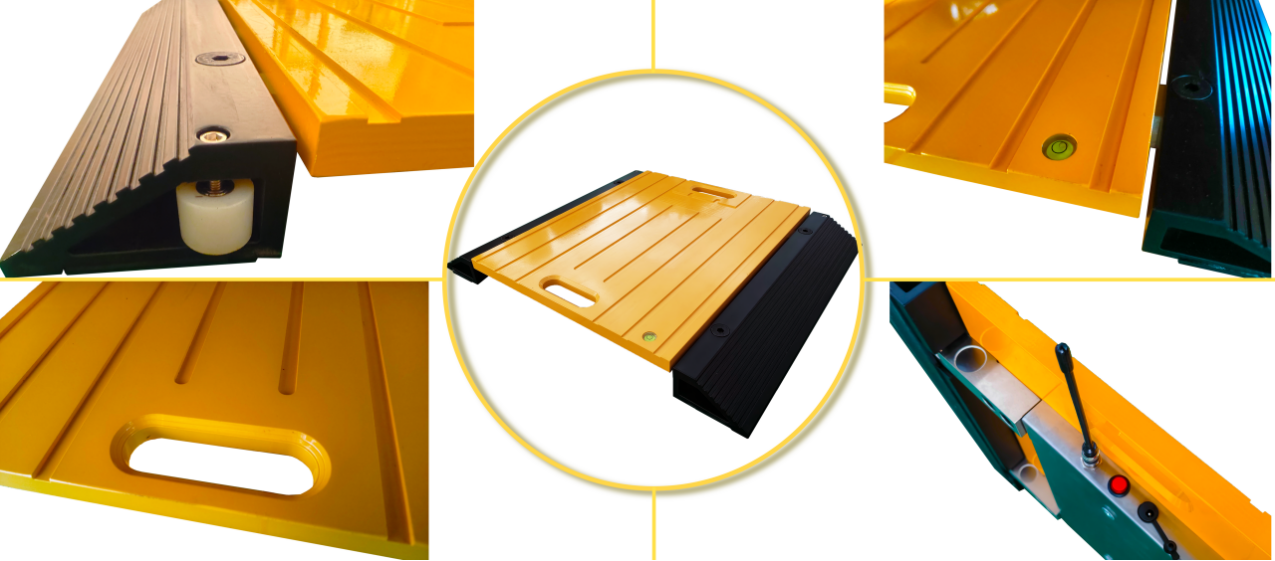

WS1101 Portable Weighing Pads Product Details:
