Portable Scale for Trucks
WS1175
Achieve legal compliance and ensure vehicle safety with the Ningbo Saintbond portable scale for trucks/portable car weight scales. This innovative, modular system is engineered to provide precise individual axle and group weight measurements anywhere, anytime. It is the definitive solution for enforcement, logistics, construction, and any operation requiring mobile and reliable axle load monitoring.
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1175
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Steel Material
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Steel Material construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1175
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Steel Material
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Steel Material construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
25-35Day
Quantity:
portable scale for trucks, portable car weight scales, mobile scale for trucks portable scale for trucks, portable car weight scales, mobile scale for trucks portable scale for trucks, portable car weight scales, mobile scale for trucks portable scale for trucks, portable car weight scales, mobile scale for trucks portable scale for trucks, portable car weight scales, mobile scale for trucks portable scale for trucks, portable car weight scales, mobile scale for trucks
Achieve legal compliance and ensure vehicle safety with the Ningbo Saintbond portable scale for trucks/portable car weight scales. This innovative, modular system is engineered to provide precise individual axle and group weight measurements anywhere, anytime. It is the definitive solution for enforcement, logistics, construction, and any operation requiring mobile and reliable axle load monitoring.

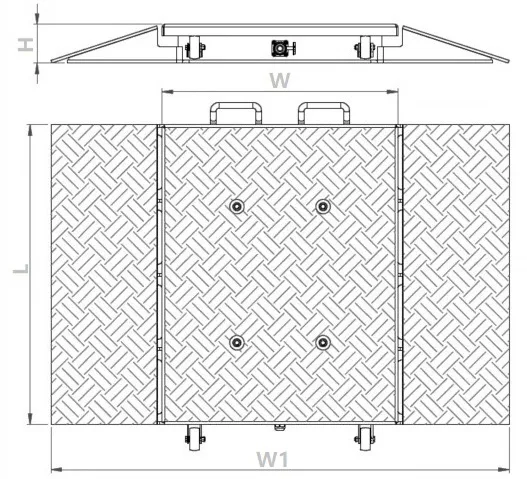

WS1175 Mobile Scale for Trucks Dimension:mm
| Dimension (mm) | Capacity (Ton) |
| LxWxH: 400 x 460 x 85mm | 1/2/3/5t |
| LxWxH: 540 x 460 x 85mm | 5/10t |
| LxWxH: 700 x 460 x 85mm | 10/15t |
| LxWxH: 800 x 700 x 85mm | 10/15/20t |
WS1175 Mobile Scale for Trucks Key Features & Benefits:
Precise Axle & Gross Weight Measurement: Independently weigh each axle, axle group, and total vehicle weight simultaneously. This ensures compliance with strict road weight regulations, preventing costly fines and vehicle damage.
Ultimate Portability: Each platform is a self-contained unit. Their compact, low-profile design allows for easy transport in a van or pickup truck and rapid deployment by a small crew directly on the road or job site.
Rugged & Durable Construction: Fabricated from high-grade carbon steel with a non-slip surface. Built to withstand the daily abuse of heavy traffic and harsh environmental conditions.
Fast, Wireless Operation: The system utilizes a secure digital wireless connection between the scales and the indicator. This allows for efficient, one-person operation from the safety of the roadside or cab.
All-Weather Reliability: Featuring hermetically sealed, high-precision load cells and weather-resistant electronics for accurate performance in rain, dust, and extreme temperatures.
Precise Axle & Gross Weight Measurement: Independently weigh each axle, axle group, and total vehicle weight simultaneously. This ensures compliance with strict road weight regulations, preventing costly fines and vehicle damage.
Ultimate Portability: Each platform is a self-contained unit. Their compact, low-profile design allows for easy transport in a van or pickup truck and rapid deployment by a small crew directly on the road or job site.
Rugged & Durable Construction: Fabricated from high-grade carbon steel with a non-slip surface. Built to withstand the daily abuse of heavy traffic and harsh environmental conditions.
Fast, Wireless Operation: The system utilizes a secure digital wireless connection between the scales and the indicator. This allows for efficient, one-person operation from the safety of the roadside or cab.
All-Weather Reliability: Featuring hermetically sealed, high-precision load cells and weather-resistant electronics for accurate performance in rain, dust, and extreme temperatures.
WS1175 Mobile Scale for Trucks Product Parameters:
| Rated load:1/2/3/5/10/15/20t (Each Weigh Pad) | |
| Dynamic error: 3~5%F.S (5~10km/h) | Compensated temp.range: -10~+50℃ |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance: ≥5000MΩ(100VDC) |
| Rated output: 1.0±0.1mV/V | Use temp.range: -30~+80℃ |
| Non-linearity: 0.2%F.S | Temp.effect on zero: 0.03F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span: 0.05F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload: 120% |
| Zero balance: ±1%F.S | Ultimate overload: 150% |
| Excitation voltage: 9~15VDC | Defend grade: IP66 |
| Recommended voltage:10V | Connection:10~20m Cable/ 20~100m Wireless |
WS1175 Mobile Scale for Trucks Weighing Indicator:
Ningbo Saintbond portable scale for trucks - Your Choice, Your Solution
Weighing Modes: Static & Dynamic
Connectivity:Cabled & Wireless
Benefit:Ultimate configuration flexibility for your specific application.
Ningbo Saintbond portable scale for trucks - Your Choice, Your Solution
Weighing Modes: Static & Dynamic
Connectivity:Cabled & Wireless
Benefit:Ultimate configuration flexibility for your specific application.
You can choose the one that best fits your space and style.
| Cable Version | Wireless Version | |||
| Static | MWI01 |  | WI280 |  |
| MWI02 |  | WI680II |  | |
| Dynamic | MWI03 |  | WI380 |  |
WS1175 Mobile Scale for Trucks Ideal Applications:
Law Enforcement & DOT: On-the-spot roadside weight enforcement to protect infrastructure.
Logistics & Fleet Management: Prevent overweight violations, optimize load distribution, and reduce maintenance costs.
Construction & Heavy Haulage: Verify load compliance of equipment and materials directly on-site.
Military:Rapid deployment for verifying vehicle weights in operational theaters.
Agriculture & Mining: Ensure compliance of harvest and mineral haulage vehicles.
Law Enforcement & DOT: On-the-spot roadside weight enforcement to protect infrastructure.
Logistics & Fleet Management: Prevent overweight violations, optimize load distribution, and reduce maintenance costs.
Construction & Heavy Haulage: Verify load compliance of equipment and materials directly on-site.
Military:Rapid deployment for verifying vehicle weights in operational theaters.
Agriculture & Mining: Ensure compliance of harvest and mineral haulage vehicles.
WS1175 Mobile Scale for Trucks Compliance & Certification:
Engineered to meet rigorous international standards for accuracy and durability. Approved for trade and enforcement use in accordance with relevant regional regulations
Engineered to meet rigorous international standards for accuracy and durability. Approved for trade and enforcement use in accordance with relevant regional regulations
Why Choose Ningbo Saintbond portable scale for trucks?
Turn any location into your weighing station. Our portable scale for trucks /portable car weight scales deliver precise axle and gross weight data in minutes, enabling smarter decisions that boost efficiency, ensure compliance, and maximize profitability. Engineered for durability in the toughest environments.
Turn any location into your weighing station. Our portable scale for trucks /portable car weight scales deliver precise axle and gross weight data in minutes, enabling smarter decisions that boost efficiency, ensure compliance, and maximize profitability. Engineered for durability in the toughest environments.
Stop Guessing, Start Measuring. Ensure Compliance on the Go.

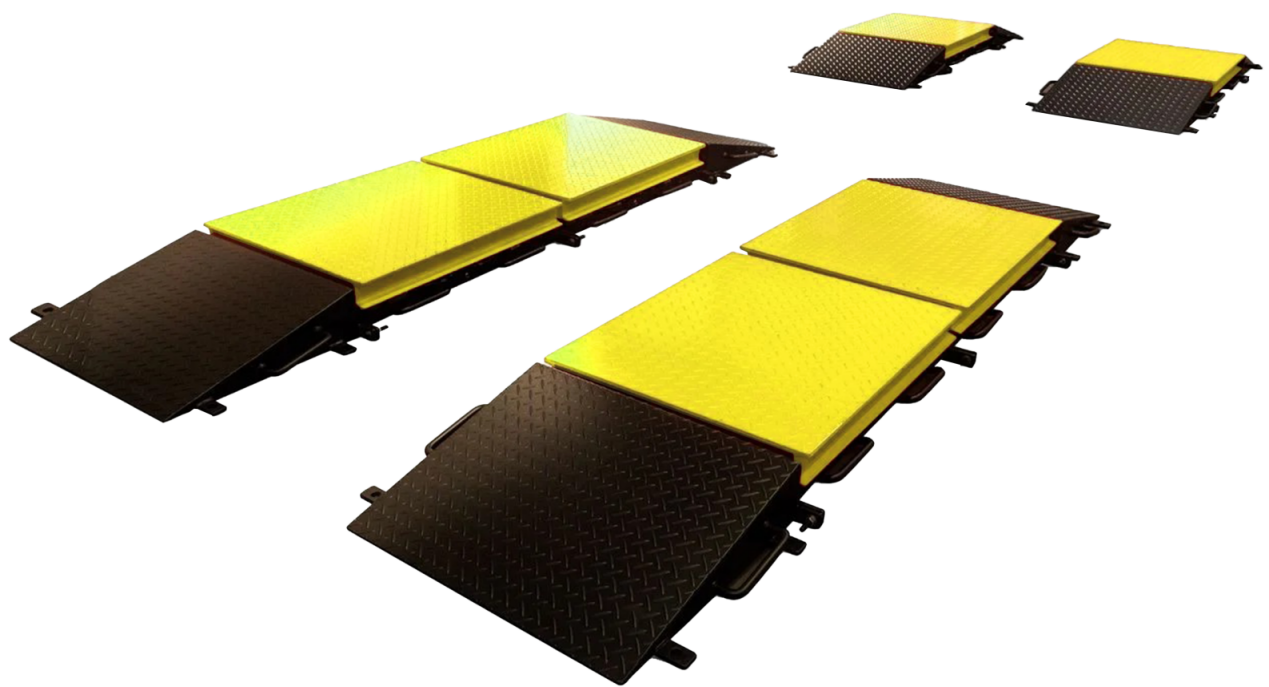

Portable scale for trucks Module:
