Portable Axle Weighbridge
WS1101W-7
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW , FOB
minimum order
1 pair
Supply Ability
20000pair / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
portable axle weighbridge, scale pads, axle load meter portable axle weighbridge, scale pads, axle load meter portable axle weighbridge, scale pads, axle load meter portable axle weighbridge, scale pads, axle load meter
Ningbo Saintbond - Portable Axle Weighbridge / axle load meter Manufacturer
Ningbo Saintbond Intelligent Technology Co., Ltd. is a leading manufacturer specializing in dynamic weighing technologies for traffic management and transportation sectors. Headquartered and operating from our production facility in Ningbo, China, we are dedicated to the development, production, and sales of precise, reliable, and high-efficiency weighing systems. Our flagship product, the Portable Axle Weighbridge/ axle load meter, is the ideal solution for overload control, road safety enforcement, and fleet management applications.
WS1101 Scale Pads Dimension: mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Scale Pads Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |

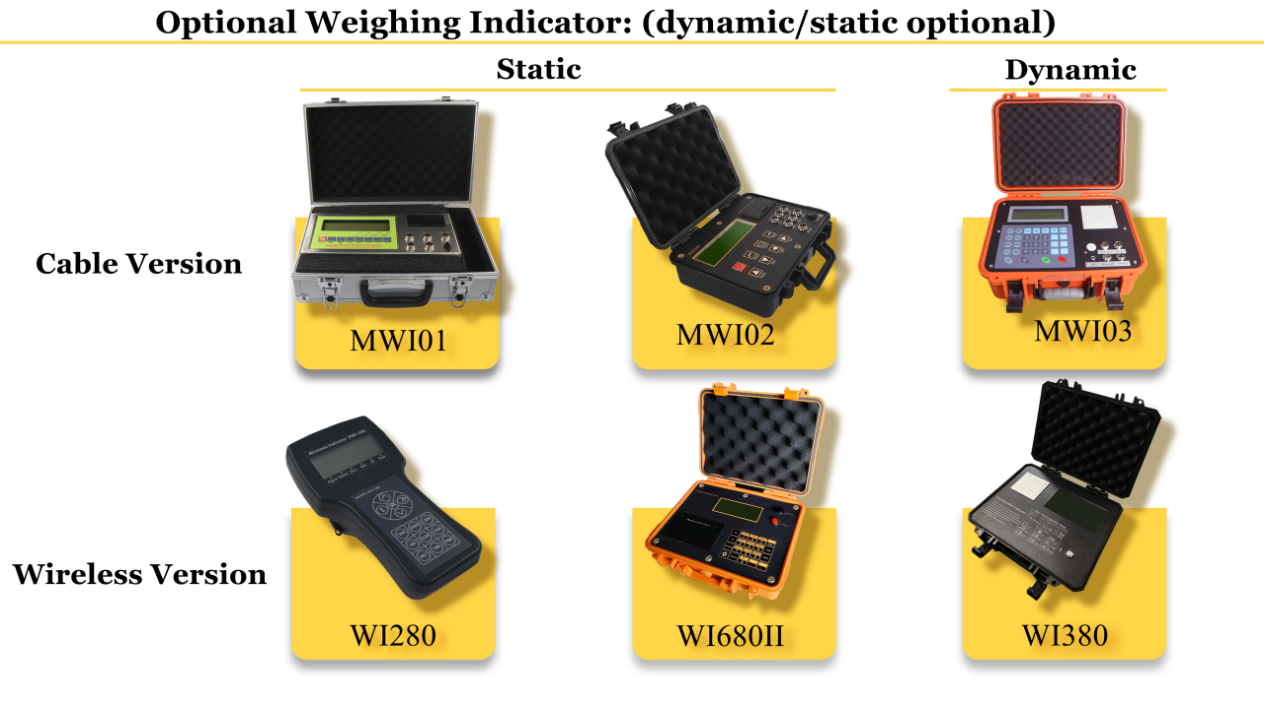

WS1101 Scale Pads Optional Weighing Indicator:
WS1101 Portable Axle Weighbridge Key Advantages:
Efficiency:Enables high-volume vehicle screening in minimal time, reducing traffic disruption.
Flexibility:Can be used anywhere and easily relocated as operational needs change.
Cost-Effectiveness: A highly economical solution compared to installing fixed weighbridge systems.
Irrefutable Evidence: Generates precise data and weight tickets that serve as legally admissible proof for enforcement actions.
Efficiency:Enables high-volume vehicle screening in minimal time, reducing traffic disruption.
Flexibility:Can be used anywhere and easily relocated as operational needs change.
Cost-Effectiveness: A highly economical solution compared to installing fixed weighbridge systems.
Irrefutable Evidence: Generates precise data and weight tickets that serve as legally admissible proof for enforcement actions.
Our Commitment:
At Ningbo Saintbond, we are committed to supplying the highest quality products, backed by exceptional technical service and support. We provide end-to-end assistance, from pre-sales consultation to after-sales service and spare parts availability.
At Ningbo Saintbond, we are committed to supplying the highest quality products, backed by exceptional technical service and support. We provide end-to-end assistance, from pre-sales consultation to after-sales service and spare parts availability.
Contact us today for more information and a quotation!

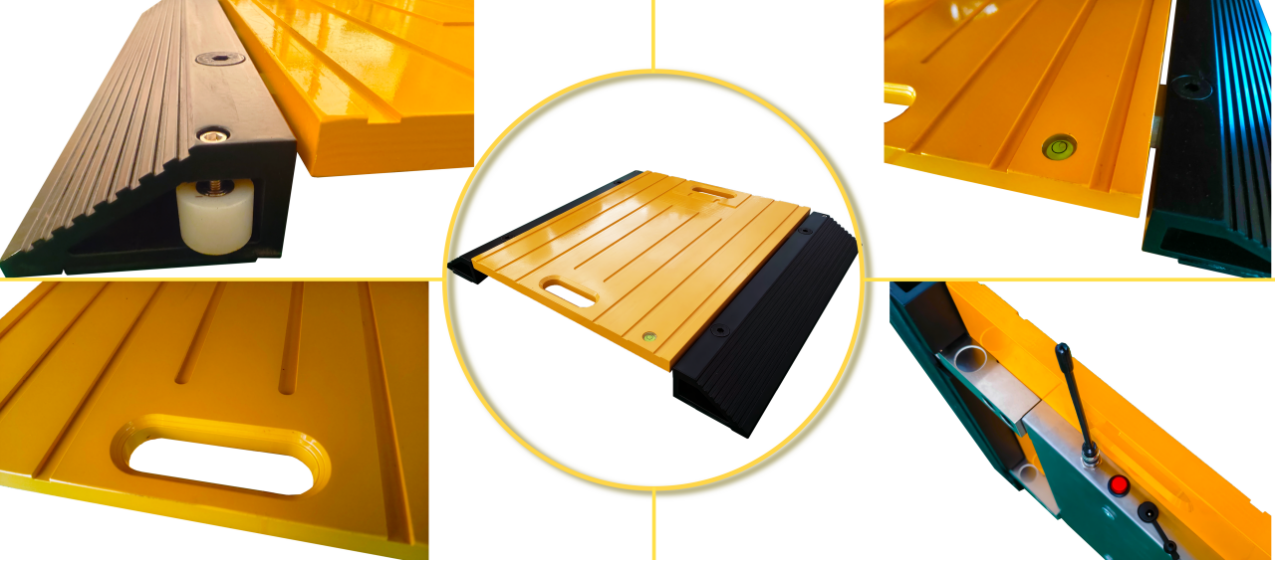

WS1101 Scale Pads Product Details:
