pitless type weighbridge
WST002

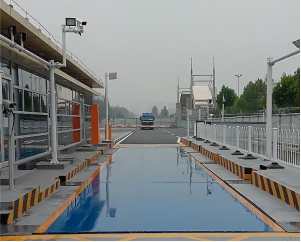

pitless type weighbridge which is not mounted in a pit. It is installed on and above the road level hence raising the bridge from the road level to a significant height. Ramps are made on both the sides of the bridge to enable easy access and removal of trucks onto the bridge deck for weighing, truck weight machine near me constructed of mild steel comprising of two main I-Beams and tranverse with I-Beams fully welded to form a rigid structure. Mild-steel chequered plates are welded on it to complete the structure, electronic road weighbridge also known as Surface Mounted Weighbridges are constructed over the level of the road surface.
Quantity:

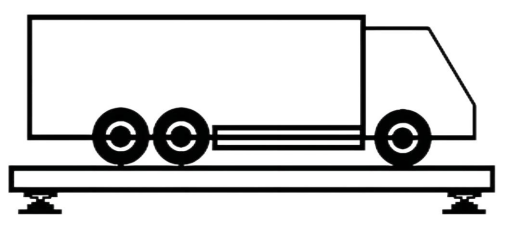

Ningbo Saintbond pitless type weighbridge, truck weight machine near me or electronic road weighbridge is a large set of scales, usually mounted permanently on a steel or concrete foundation, that is used to weigh entire rail or road vehicles and their contents. By weighing the vehicle both empty and when loaded, the load carried by the vehicle can be calculated. pitless type weighbridge can be surface mounted with a ramp leading up a short distance and the weighing equipment underneath or they can be pit mounted with the weighing equipment and platform in a pit so that the weighing surface is level with the road.
Specifications:
| Size | Length of module | QTY of bearing frame | Actual length(m) |
| 3X8 | 4+4 | 3 | 8 |
| 3X10 | 5+5 | 3 | 10 |
| 3X12 | 5.8+5.8 | 3 | 11.6 |
| 3X15 | 5+5+5 | 4 | 15 |
| 3X16 | 5.8+5+5 | 4 | 15.8 |
| 3X18 | 5.8+5.8+5.8 | 4 | 17.4 |
| 3X20 | 5+5+5+5 | 5 | 20 |
| 3X21 | 5.8+5+5+5 | 5 | 20.8 |
| 3X22 | 5.8+5+5+5.8 | 5 | 21.6 |
| 3X24 | 5.8+5.8+5.8+5.8 | 5 | 23.2 |
1.According to customer's requirements, the length & width of the platform can be customized, but the transport method should be changed accordingly.
2.Based on the different country’s truck limits, we can also customize the specific electronic road weighbridge by the defined axle load.
Description:

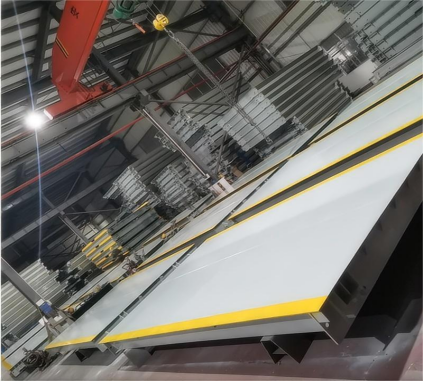

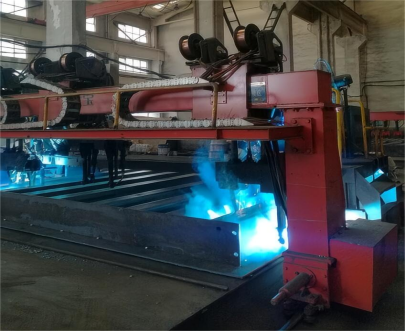

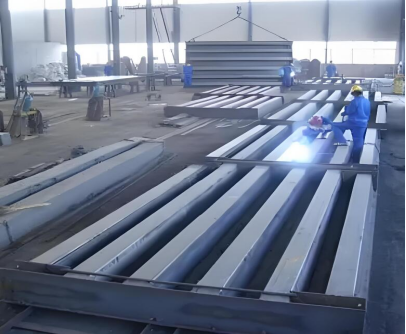

1:WST002 series pitless type weighbridge are the newest products which is suitable for container shipment. The scale is robotically welded, machine-fixtured and has the highest quality paint finish available in the industry. Orthotropic ribs add torsional rigidity for off-center loading.it is capable of handling high volumes of traffic over a long service life. with the features of easy mounting and economical transportation cost and so on.
2:Lower shipping cost

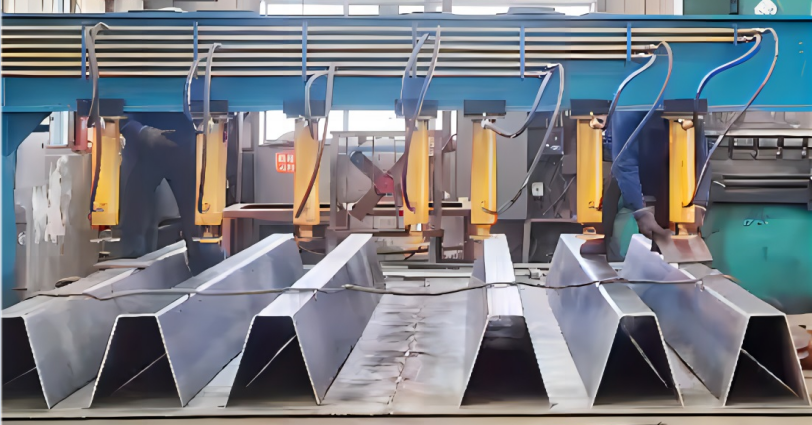

The U rib is low but very thick, so we can get power module with low structure, you can put 2 pcs 3x12m TS-T into a 20 feet container. The freight charge TS-T saved for you will allow you to buy another truck scale from China again.
3.Easy to install or move
The WST002 pitless type weighbridge is designed by module, it is easy to install or move and can saving a lot of Euros on labor cost.
You only need to assembly the module and bearing frame, then put the platform into the foundation pit.
1:A ramp as a option, you can install you truck scale with pitless, the ramp is easy to move and reuse. That can reduce you foundation cost.

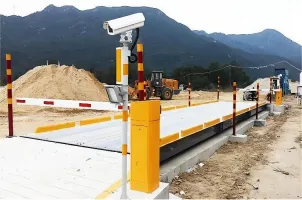

2:Hand rails to assure your equipment's safety and keep your truck scale in a good status.
There are always some people who do not obey the rules, turn on the shallowpit platform, this will damage the bumper and affact the accuracy, maybe some heavy truck is huge, the driver couldn’t see the marge of the electronic road weighbridge clearly, often drive out of the platform, Caused the accident. We can provide a hand rails to avoid these happen.
Applications:
1.Weighing
2.Net weight/tare
3.Weight accumulation
Competitive Advantage:
1.We develop this export style electronic road weighbridge, suitable for container transportation, and becomes the most popular export style structures in China market.
2.Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.
3.Easy installation, robust structure.
Pit Weighbridge:
Advantages: Small cover an area, no need for slopes, convenient to use, which is more suitable for users with smaller venues;
Disadvantages: When installing, it is necessary to choose a place with high terrain, which is convenient for drainage, and maintenance and repair operations may be difficult;
Pitless Weighbridge:
Advantages: Easy to install, easy to maintain and repair, beneficial for ventilation of the scale body, prolonging its service life, higher than the ground for drainage, suitable for customers with larger sites, or those who have already poured concrete on the ground and do not want to dig foundation pits again.
Disadvantage: It requires a dedicated slope for guidance and occupies a large area.
