mm Weighbridge
WST003-8
Registered weighbridge near me are useful in areas where hazardous gases are present in the atmosphere and in places where soil is rocky. Pitless type weighbridges also offer very good services in water logging areas, mm weighbridge constructed of mild steel comprising of two main I-Beams and tranverse with I-Beams fully welded to form a rigid structure. Mild-steel chequered plates are welded on it to complete the structure, used commercial truck scales for sale also known as Surface Mounted Weighbridges are constructed over the level of the road surface.
Quantity:
Ningbo Saintbond mm weighbridge, registered weighbridge near me or used commercial truck scales for sale is a large set of scales, usually mounted permanently on a steel or concrete foundation, that is used to weigh entire rail or road vehicles and their contents. By weighing the vehicle both empty and when loaded, the load carried by the vehicle can be calculated. mm weighbridge can be surface mounted with a ramp leading up a short distance and the weighing equipment underneath or they can be pit mounted with the weighing equipment and platform in a pit so that the used commercial truck scales for sale weighing surface is level with the road.
Specifications:
| size | Length of module | QTY of bearing frame | Actual length(m) |
| 3X6 | 5.55 | 2 | 6.25 |
| 3X8 | 3.55+3.55 | 3 | 8.15 |
| 3X9 | 4.55+3.55 | 3 | 9.15 |
| 3X10 | 4.55+4.55 | 3 | 10.15 |
| 3X12 | 5.55+5.55 | 3 | 12.15 |
| 3X15 | 4.55+4.55+4.55 | 4 | 15.05 |
| 3X16 | 4.55+5.55+4.55 | 4 | 16.05 |
| 3X18 | 5.55+5.55+5.55 | 4 | 18.05 |
| 3X20 | 4.55+4.55+4.55+4.55 | 5 | 19.95 |
| 3X21 | 5.55+4.55+4.55+4.55 | 5 | 20.95 |
| 3X22 | 5.55+4.55+4.55+5.55 | 5 | 21.95 |
| 3X24 | 5.55+5.55+5.55+5.55 | 5 | 23.95 |
Description:
1.The WST003 mm weighbridge are the newest products which is suitable for container shipment. The scale is robust and has the highest quality paint finish available in the industry. These mm weighbridge equipped with high accuracy load cell and intelligent weighing terminal.
2.The mm weighbridge has low module, it is only 230mm and 2 pcs 3x18m can be delivered in one 20' container, the actual length is 18m for 3x18m truck scale, not the 17.4m. it is designed for the trucks may be frequently overloaded.
3.The registered weighbridge near me weighing system is built on high-accuracy and good working reliability. The registered weighbridge near me system provides weighing accuracy.
4.The WST003registered weighbridge near me are designed to be transported in a standard sea container or on a flatbed truck without the added expense of a wide-load permit and extra safety precautions such as flashing lights and escort vehicles.
5.The registered weighbridge near me can also be disassembled and transported to another site, These scales are ideally suited for above-ground mounting where debris typically accumulates and must be periodically cleaned to insure that these materials do not affect the scale operation like that of many competitive models which are not so easily cleaned.
6.The entire used commercial truck scales for sale weighing system also can be equipped with peripherals like printers, scoreboards, PCS and with used commercial truck scales for sale weighing software to meet the customer's specific requirements.
Applications:
1.Weighing
2.Net weight/tare
3.Weight accumulation
Competitive Advantage:
1.We develop this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.
2.Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.
3.Easy installation, robust structure.

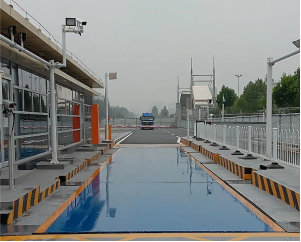

Pit Weighbridge:
Advantages: Small cover an area, no need for slopes, convenient to use, which is more suitable for users with smaller venues;
Disadvantages: When installing, it is necessary to choose a place with high terrain, which is convenient for drainage, and maintenance and repair operations may be difficult;

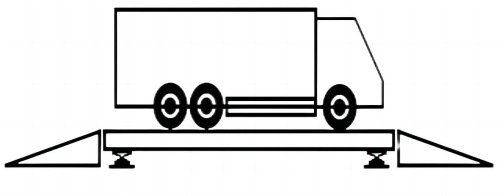

Pitless Weighbridge:
Advantages: Easy to install, easy to maintain and repair, beneficial for ventilation of the scale body, prolonging its service life, higher than the ground for drainage, suitable for customers with larger sites, or those who have already poured concrete on the ground and do not want to dig foundation pits again.
Disadvantage: It requires a dedicated slope for guidance and occupies a large area.
