Medium Speed Weigh in Motion Bending Plate
WS1192-2

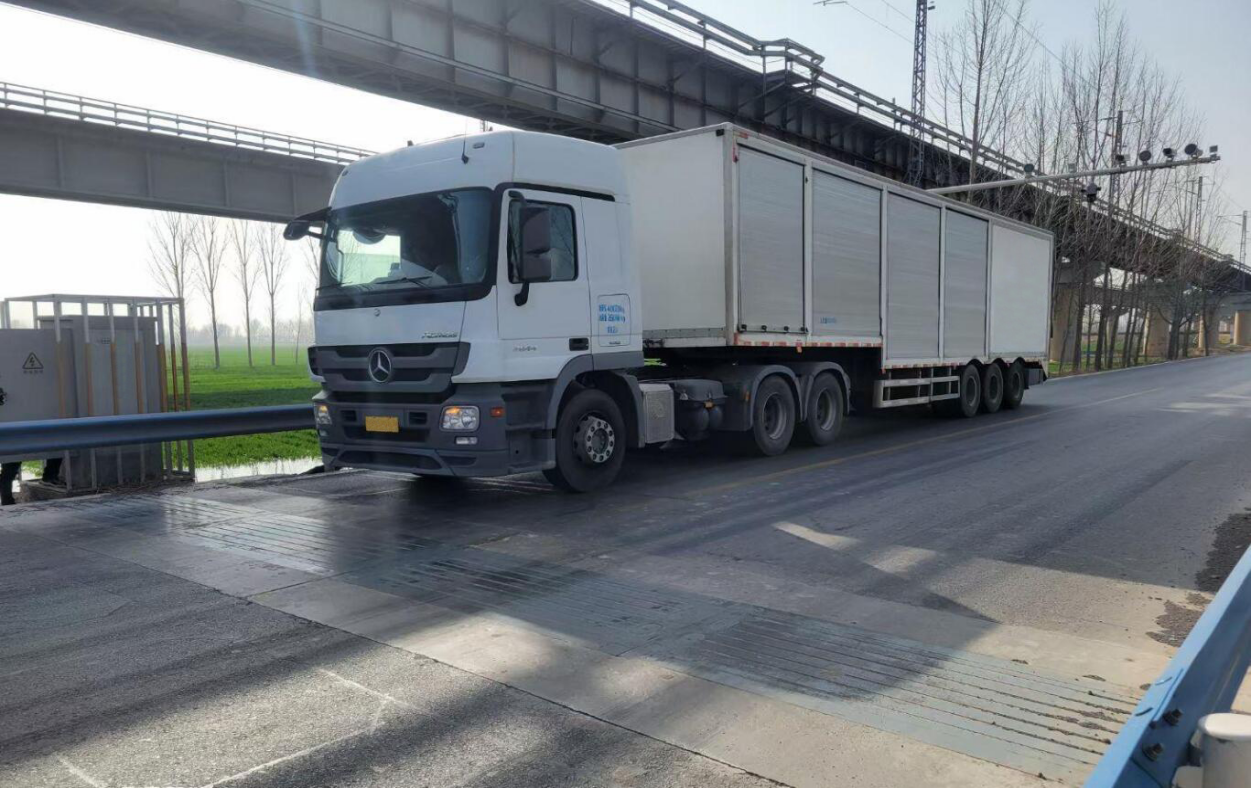

Bending Plates Highway Weighing designed to capture and record the axle weights and gross vehicle weights as vehicles drive over a measurement site. Bending Plate weighing system consists of weighing pad in front of toll lane and other detecting devices,This is able to acquire vehicle data and transfer it to computer, This can be widely use in Traffic Research to promote Highway Construction and Modernized Management, Medium speed weigh in motion Bending Plate (WIM) System can accurately weigh vehicles at speeds upto 60 km/h.
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Bending Plate weighing system providing you the best range of Truck Weigh in Motion such as Weigh in Motion, Medium speed weigh in motion Bending Plate and Bending Plate weighing system with effective & timely delivery, Medium speed weigh in motion Bending Plate (WIM) System can accurately weigh vehicles at speeds upto 60 km/h. Medium speed weigh in motion Bending Plate systems utilize plates with strain gauges bonded to the underside. Medium speed weigh in motion Bending Plate system records the strain measured by strain gauges and calculates the dynamic load.
This state-of-art Medium Speed Bending Plate weighing system is ideal for dynamic vehicle weighing suitable for China Ningbo Saintbond wherein stop & go & free-flow traffic conditions persist. Bending Plates Highway Weighing is a proven technology which is highly reliable, and its durable & ultra slim profile is easier to install with minimal civil work required at the road surface.
Bending Plate weighing system Providing you the best range of Medium speed weigh in motion Bending Plate such as Weigh in Motion, In Motion Truck Weigh and Toll Weighing System with effective & timely delivery.
| Technical Parameter: | |
| Parameters | Paramter Value |
| Product Specification | WS1192-15(1250m/1500m/1750m/2000m) |
| Rated Capacity | 15t |
| Rated Output | 0.75±0.05 mV/V |
| Input Resistance | 1250:1750±10Ω;1500:2100±10Ω;1750:2450±10Ω;2000:2800±10Ω |
| Output Resistance | 1250:1750±10Ω;1500:2100±10Ω;1750:2450±10Ω;2000:2800±10Ω |
| Insulation Resistance | ≥5000 MΩ(100VDC) |
| Zero Output | 1000UV ~ 1500UV |
| Use Temp. Range | -40℃ ~ +80 ℃ |
| Recomended Excitation Vol. | 10VDC |
| Allowable Exciting Voltage | 5VDC ~ 20VDC |
| Safe Overload Range | 1.2 |
| Ultimate Overload Range | 1.5 |
| Protection Grade | IP67 |
| Cable Specification | Φ5.8×10m(Four core shielding cable) |
| Summary: |
| 1:High measurement accuracy, fast dynamic response; |
| 2:Integrated structure, thin thickness, construction, easy installation; |
| 3:The surface of a one-time full vulcanization process, the protection level to IP68, so adapt to the harsh, complex environmental conditions, long-term, stable work; |
| 4:Overload capacity, long life, good horizontal consistency, partial load error is small; |
| 5:Set non-slip front stripes to increase the friction between the table and tires; |
| 6:Work continuously in the range of -40℃～+100℃; |
| 7:According to customer needs to customize the bending plate. |
