Mechanical Truck Scale
WS1104W-2
Ningbo saintbond mechanical truck scale for both static and dynamic applications, truck stop with cat scale near me axle wireless pads designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, wheel loader scales for sale are designed for creating static wheel and axle weighing and dynamic axle weighing stations.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( truck stop with cat scale near me, mechanical truck scale, wheel loader scales for sale truck stop with cat scale near me, mechanical truck scale, wheel loader scales for sale truck stop with cat scale near me, mechanical truck scale, wheel loader scales for sale truck stop with cat scale near me, mechanical truck scale, wheel loader scales for sale )
Wireless Axle mechanical truck scale: The Ultimate in Portable, Precision Weighing
Wireless Axle mechanical truck scale: The Ultimate in Portable, Precision Weighing
Introduction:WeighAnywhere, with Unmatched Ease
The Wireless Axle mechanical truck scale System. Engineered for speed, portability, and precision, this system eliminates the constraints of traditional fixed mechanical truck scale. Our wireless axle mechanical truck scale provide legal-for-trade accuracy right where you need it—on the road, at the job site, or in your yard. Whether for law enforcement, freight billing, load optimization, or agricultural use, this system delivers powerful data without the permanent installation.

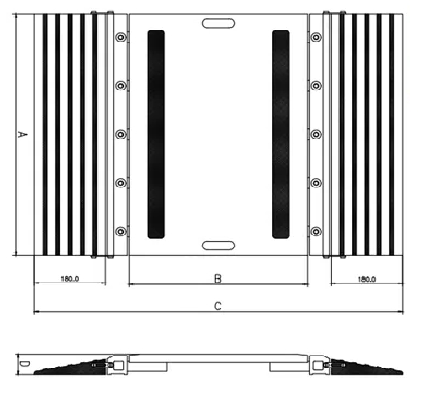

WS1104W Mechanical Truck Scale Dimension: mm
| Capacity | A | B | C | D |
| 1~5t | 500 | 400 | 760 | 58 |
| 2~20t | 720 | 450 | 810 | 58 |
| 5~25t | 900 | 500 | 860 | 58 |
WS1104W Mechanical Truck Scale Technical Parameter:
| Dynamic comprehensive error(%F.S): 1.5 (1~5km/h) 3 (5~10km/h) | ||||
| Static error (%F.S):0.1~0.3 | Compensated temp.range:-10~+50℃ | |||
| Rated load:1~25t | Static error:0.1~0.3%F.S | |||
| Dynamic error: 3%F.S (5~10km/h) | Insulation resistance:≥5000 MΩ(100VDC) | |||
| Static comprehensive error: 0.1~0.5%F.S | Use temp.range:-30~+80℃ | |||
| Rated output:1.0±0.1 mV/V | Temp.effect on zero: 0.03 F.S/10℃ | |||
| Non-linearity:0.2%F.S | Temp.effect on span:0.05 F.S/10℃ | |||
| Error on corners: 0.2%F.S | Excitation voltage:9~15VDC | |||
| Repeatability: 0.05%F.S | Recommended voltage:10 V | |||
| Zero balance: ±1%F.S | Defend grade: IP66 | |||
| Wireless Transmission Frequency | 430MHz to 470MHz | |||
| Wireless Transmission Distance | 50~100meters (In Open Place) | |||
| PC Software | Optional, Customizable | |||
| Wireless | PC Software | Optional, Customizable | ||
| Mobile Bluetooth | Optional | |||
| Wireless Distance | 50~200m (Optional) | |||
WS1104W Mechanical Truck Scale Wireless Weighing Indicator: ( Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | ◎Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | ◎Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | ◎Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | ◎The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | ◎System non-linearity＜0.01%; | |
| Battery Life: | ≥50 hours | ◎Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | ◎Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | ◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | ◎Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
How the mechanical truck scale System Works:
The process is simple and integrated:
✅ Deploy: Place the individual wireless scale pads on a firm, level surface in the required configuration (e.g., single axle, tandem axle, or full static roll-on).
✅ Drive On: The vehicle drives onto the pads, one axle at a time.
✅ Weigh: The weight on each pad is measured by its internal load cells and transmitted via a secure wireless signal to the central handheld indicator.
✅ Analyze: The indicator automatically calculates and displays individual axle weights, group weights, and the total gross vehicle weight instantly.
The process is simple and integrated:
✅ Deploy: Place the individual wireless scale pads on a firm, level surface in the required configuration (e.g., single axle, tandem axle, or full static roll-on).
✅ Drive On: The vehicle drives onto the pads, one axle at a time.
✅ Weigh: The weight on each pad is measured by its internal load cells and transmitted via a secure wireless signal to the central handheld indicator.
✅ Analyze: The indicator automatically calculates and displays individual axle weights, group weights, and the total gross vehicle weight instantly.
WS1104W Mechanical Truck Scale Ideal Applications:
Wireless Axle Mechanical Truck Scales are the perfect solution for:
✅ Commercial Vehicle Enforcement (DOT Officers): For roadside safety compliance checks.
✅ Logistics & Freight: Verifying load weights for accurate billing and optimizing trailer loads.
✅ Construction & Mining: On-site weighing of equipment and trucks to prevent overloads.
✅ Agriculture: Weighing harvest loads directly in the field.
✅ Waste & Recycling: Monitoring load weights from satellite locations.
Wireless Axle Mechanical Truck Scales are the perfect solution for:
✅ Commercial Vehicle Enforcement (DOT Officers): For roadside safety compliance checks.
✅ Logistics & Freight: Verifying load weights for accurate billing and optimizing trailer loads.
✅ Construction & Mining: On-site weighing of equipment and trucks to prevent overloads.
✅ Agriculture: Weighing harvest loads directly in the field.
✅ Waste & Recycling: Monitoring load weights from satellite locations.
Why Choose Our Wireless Mechanical Truck Scale Scale System?
We've redefined portable weighing by combining rugged hardware with intelligent, user-friendly software. Our system isn't just a set of scales; it's a complete weighing solution that empowers you to make critical decisions on the spot. With unparalleled ease of use, robust construction, and certified accuracy, it is the most versatile and efficient weighing tool you can own.
We've redefined portable weighing by combining rugged hardware with intelligent, user-friendly software. Our system isn't just a set of scales; it's a complete weighing solution that empowers you to make critical decisions on the spot. With unparalleled ease of use, robust construction, and certified accuracy, it is the most versatile and efficient weighing tool you can own.
