LPG Gas Weight Machine
LPG120
LPG-120 LPG gas weight machine is a machine that can check, tare, ration and measure weight. This lpg cylinder weighing machine is combined with reliable hardware design and scientific software technology, it adapts superior load cell, solenoid valve and advanced microcomputer control, it integrates filling and checking as one set. This lpg cylinder weighing machine is the first choice of the liquefied petroleum gas filling factory and the liquefied petroleum filling station.
Quantity:
LPG gas weight machine Overview:
LPG-120 LPG gas weight machine is a machine that can check, tare, ration and measure weight. This lpg cylinder weighing machine is combined with reliable hardware design and scientific software technology, it adapts superior load cell, solenoid valve and advanced microcomputer control, it integrates filling and checking as one set. This lpg cylinder weighing machine is the first choice of the liquefied petroleum gas filling factory and the liquefied petroleum filling station.
LPG gas weight machine Features:
✅Double row super bright nixie tube display, can display multiple information;
✅Equip with built-in clock circuit, can display and record filling time;
✅User can set the filling weight at will;
✅Can set total weight filling, automatic net weight filling and recombination filling(both set value of total weight and net weight functions);
✅Refuse to fill function when the empty bottle weight is lower than the lower limit, and restriction function when it is higher than the upper limit(to avoid accidental overweight);
✅Classify accumulated total, store different filling weight and bottle quantity, liquefied gas total weight and sum;
✅Can check via sequence and condition(Work number, time, client number);
✅With password protector of main set up parameter and accumulated value to avoid the man-made damage;
✅With power-off data protection function;
✅With computer communication function;
LPG gas weight machine Main structure:

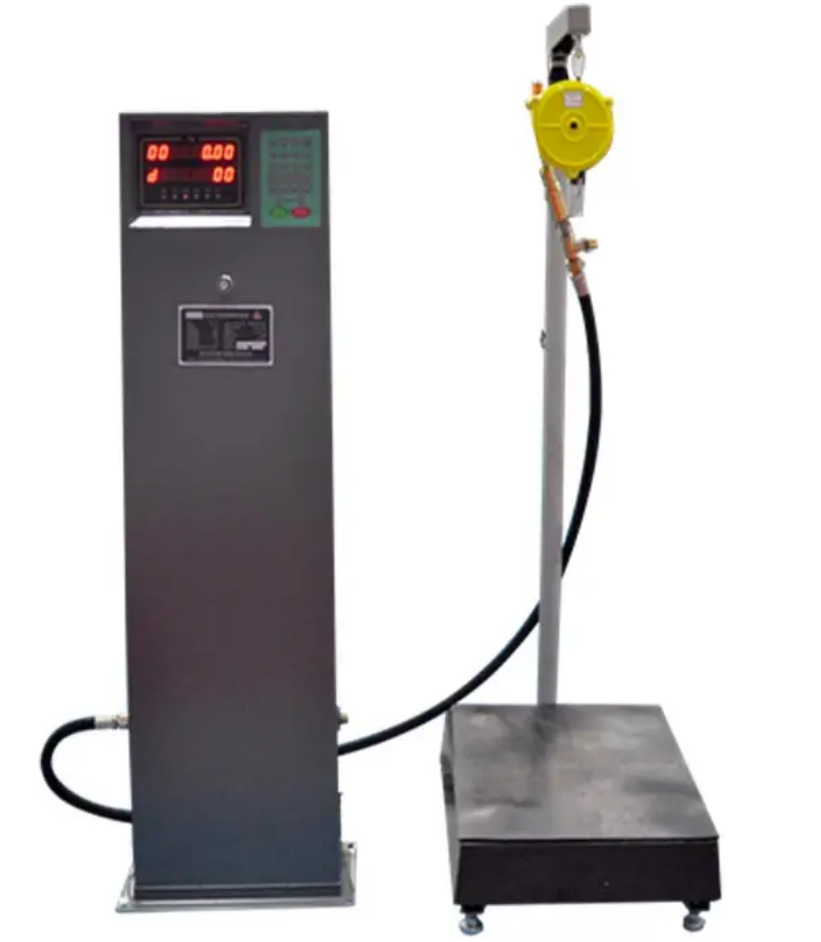

✅This lpg gas cylinder weight machine is composed of scale body, hanging bracket, power supply control box, controller, keyboard, display, explosion-proof solenoid valve (and filling gun).
LPG gas weight machine Applications:
✅Liquefied Petroleum Gas Filling Machine, explosion-proof;
Main Technical Parameter:
| Item | Details |
| Power supply | Single phase 220V 50Hz |
| Power | 30W |
| Max. capacity | 120kg |
| Min. capacity | 1kg |
| Division value | 50g |
| Accuracy class | III |
| Operating temperature | -40℃~50℃ |
| Operating humidity | Relative humidity≤90% |
| Operating pressure | 2.2MPa |
| Weighing platform size | 420mm×530mm |
| Explosion proof mark | Ex ibⅡCT5 |
