Junction Box for Load Cell
JBAL002
A junction box, also called a j-box or a summing box, brings multiple load cells together so they can function as a single scale. A junction box houses wire connections from multiple load cells to sum their signals and send the value to a weight indicator. The enclosure provides environmental protection for all of wire connections. A junction box also provides a convenient place to troubleshoot system errors because all load cell connections are in one place.
Quantity:
Ningbo saintbond specializes in providing top-notch Weighbridge Junction Box , Junction Box for Load Cell , Digital Junction Box to our customers. Our team of experts is dedicated to delivering high quality Weighbridge Junction Box , Junction Box for Load Cell , Digital Junction Box. Ningbo Saintbond Supplier.
Junction Box for Load Cell, also known as summing boxes, are essential components in weighing systems, designed to facilitate accurate and reliable measurements in various industrial and commercial settings. These boxes serve as central hubs where load cells, cables, and other components of the weighing system converge, providing a secure and organized connection point. Junction boxes are engineered to withstand harsh environmental conditions, including moisture, dust, and temperature fluctuations. This ensures their suitability for use in diverse applications ranging from food processing plants and agricultural applications, to heavy-duty industrial environments.

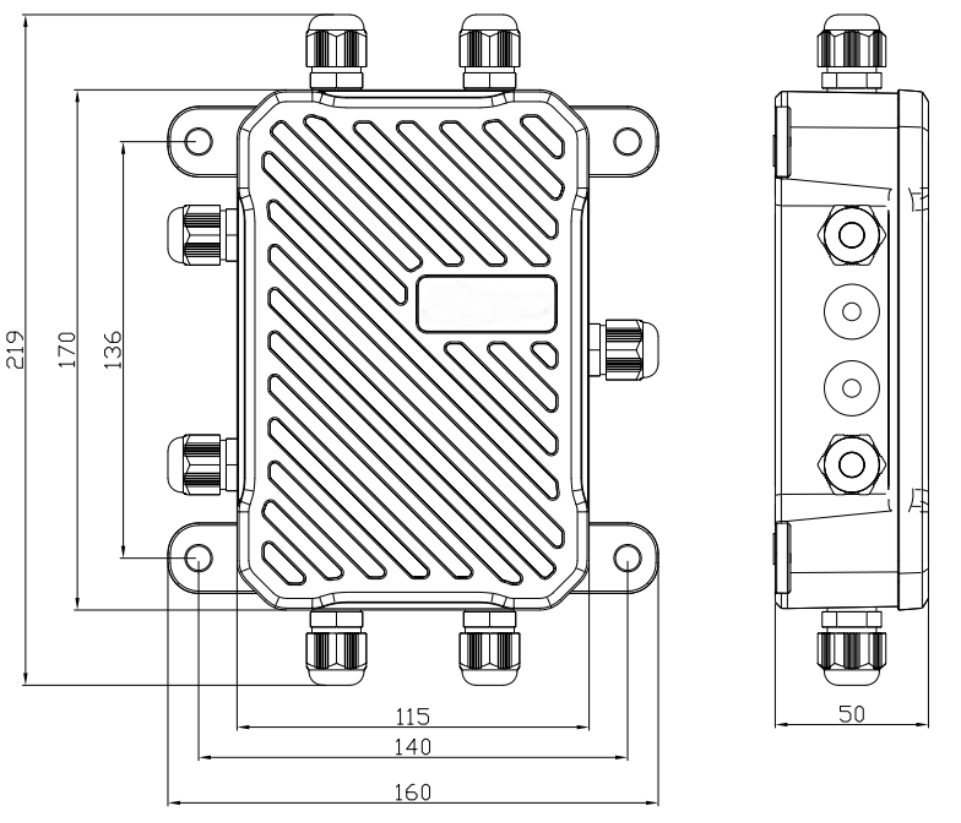

Dimension:mm
JBAL002-4/6/8/10(Optional)
Product Description:

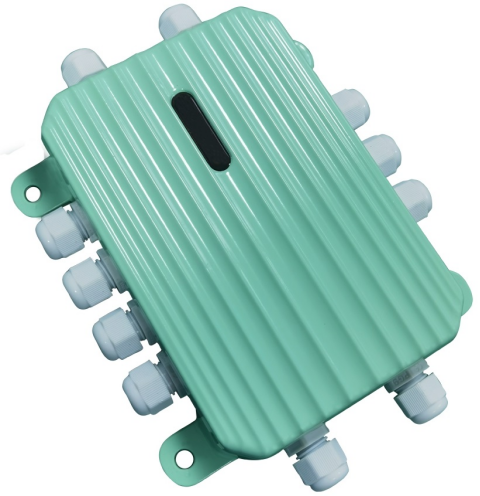

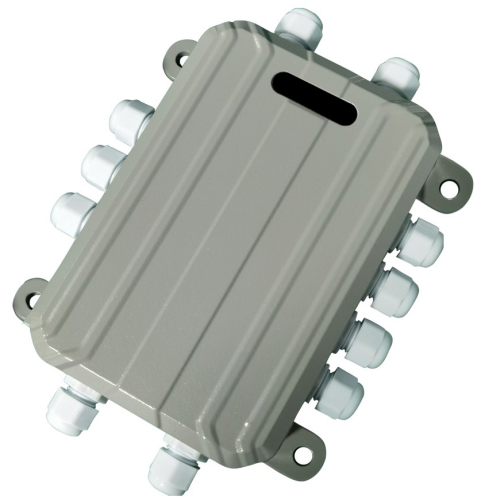

Aluminum die-cast waterproof junction box, die-cast shell waterproof and impact resistant;
High sensitivity, fast reaction speed, high accuracy, and good stability effect;
Structural waterproof design, dedicated waterproof joint, waterproof grade IP68;
Achieve waterproof and moisture-proof measures to achieve a more stable, reliable, and durable product.
By adjusting the output voltage to ensure that the ratio of the effective sensitivity coefficient of each sensor to the output impedance of the sensor is close to the same, ensuring output balance. Four, six, eight, and ten connection methods are optional;
High precision, low drift resistance and potentiometer are used to ensure the accuracy and stability of the system. Reserve welding holes next to each wiring post to achieve dual use of welding and inserting wiring, which can be selected independently;
The PCB board is welded with protective components against surge and induced lightning, which can effectively prevent damage to sensors and instruments caused by induced lightning and surge signals;
Aluminum die-cast waterproof junction box, die-cast shell waterproof and impact resistant;
High sensitivity, fast reaction speed, high accuracy, and good stability effect;
Structural waterproof design, dedicated waterproof joint, waterproof grade IP68;
Achieve waterproof and moisture-proof measures to achieve a more stable, reliable, and durable product.
By adjusting the output voltage to ensure that the ratio of the effective sensitivity coefficient of each sensor to the output impedance of the sensor is close to the same, ensuring output balance. Four, six, eight, and ten connection methods are optional;
High precision, low drift resistance and potentiometer are used to ensure the accuracy and stability of the system. Reserve welding holes next to each wiring post to achieve dual use of welding and inserting wiring, which can be selected independently;
The PCB board is welded with protective components against surge and induced lightning, which can effectively prevent damage to sensors and instruments caused by induced lightning and surge signals;
