Fully Electronic Weighbridge
WST001-5
modern weighbridge is called so because it is mounted in a pit. A pit is dug into and the foundation along with pillars and other support is casted with concrete and the bridge deck is mounted in this pit so that the surface of the bridge is kept at the same level as road level, on board vehicle weighing systems designed and built with vey high quality materials, this represents the most efficient solution for saving time, space, and money in comparison to the classic weigh bridges currently available on the market, fully electronic weighbridge is ideal for applications in the construction and recycling industry where short-term weighing is more prevalent.
Quantity:

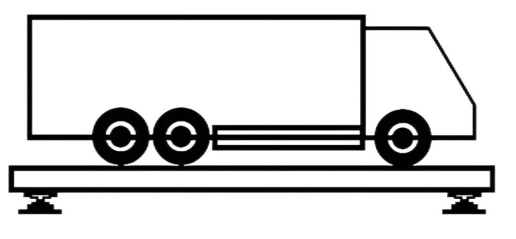

Ningbo Saintbond fully electronic weighbridge, on board vehicle weighing systems or modern weighbridge is a large set of scales, usually mounted permanently on a steel or concrete foundation, that is used to weigh entire rail or road vehicles and their contents. By weighing the vehicle both empty and when loaded, the load carried by the vehicle can be calculated. fully electronic weighbridge can be surface mounted with a ramp leading up a short distance and the weighing equipment underneath or they can be pit mounted with the weighing equipment and platform in a pit so that the weighing surface is level with the road.
Specifications:
| Size | Length of module | QTY of Module | Load cell Qty. |
| 3X6 | 1.5x6m | 2 | 4 |
| 3X8 | 1.5x4m | 4 | 6 |
| 3X9 | 1.5x4.5m | 4 | 6 |
| 3X10 | 1.5x5m | 4 | 6 |
| 3X12 | 1.5x6m | 4 | 6 |
| 3X15 | 1.5x5m | 6 | 8 |
| 3X16 | 1.5x5.33m | 6 | 8 |
| 3X18 | 1.5x6m | 6 | 8 |
1. modern weighbridge Capacity: 10T-200T
2. Structure of modern weighbridge: U-shape beams
3. Thickness of smooth plate (8-12mm)
Chequer plate optional:
4. Painting: Anti rust and anti corrosion painting
5. Accuracy class: OIML(III)
6. Safe Overload of fully electronic weighbridge: 150%

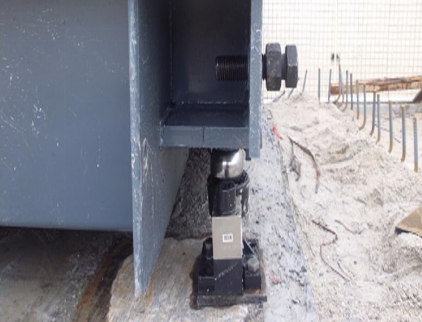

7. Load cells for fully electronic weighbridge: Keli, Zemic or Saintbond Load Cell;
8. fully electronic weighbridge With indicator: Yaohua A9P
9. All the screws and tools used for installation has been included in the price
Description:

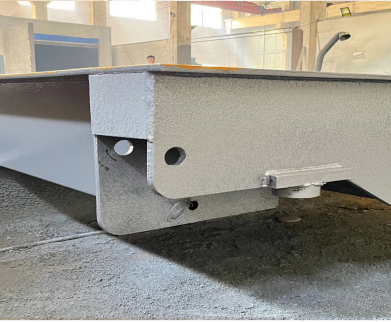

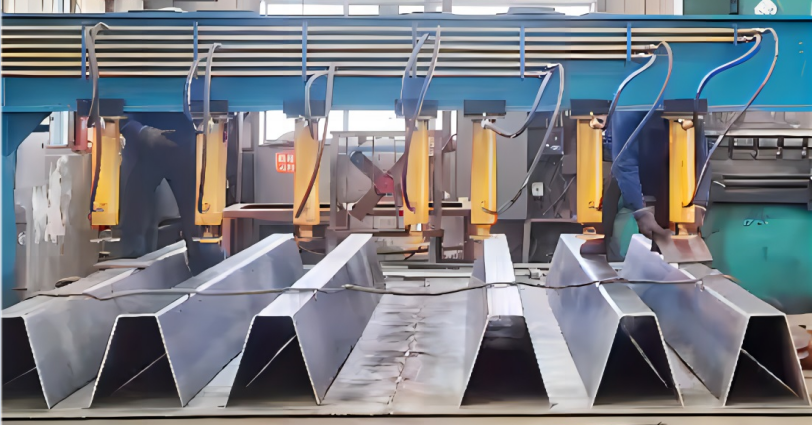

1.Design 6 pieces U beam design;
2.U beam thickness design with 6mm;
3.Pre camber machine to making platform have a high curves in Middle of platform;

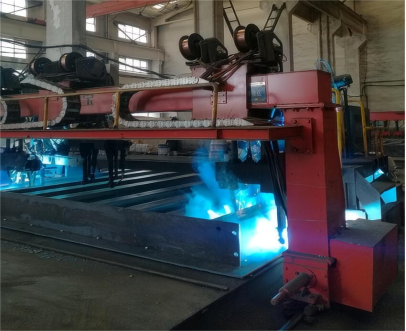

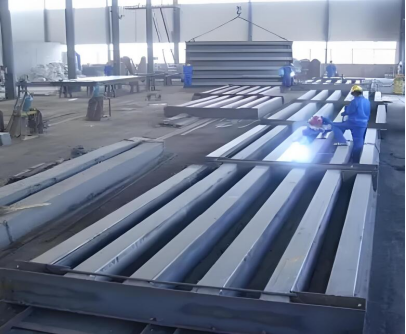

4.Auto welding machine to ensure welding is smooth and good strength;
5.Shot blasting clean all dirty before painting;
Applications:
1.Weighing
2.Net weight/tare
3.Weight accumulation
Competitive Advantage:
1.We support small orders,fast delivery for customers to save even more valuable time.
2.We have abundant production and export experience ,best price and good quality.
3.We have global market,has been exported to UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.

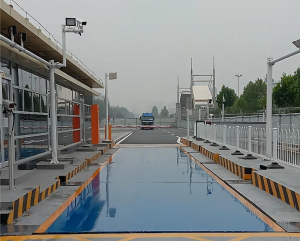

Pit Weighbridge:
Advantages: Small cover an area, no need for slopes, convenient to use, which is more suitable for users with smaller venues;
Disadvantages: When installing, it is necessary to choose a place with high terrain, which is convenient for drainage, and maintenance and repair operations may be difficult;

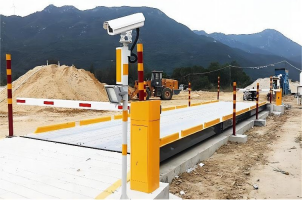

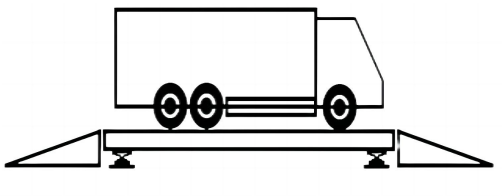

Pitless Weighbridge:
Advantages: Easy to install, easy to maintain and repair, beneficial for ventilation of the scale body, prolonging its service life, higher than the ground for drainage, suitable for customers with larger sites, or those who have already poured concrete on the ground and do not want to dig foundation pits again.
Disadvantage: It requires a dedicated slope for guidance and occupies a large area.
Product Deatail:
