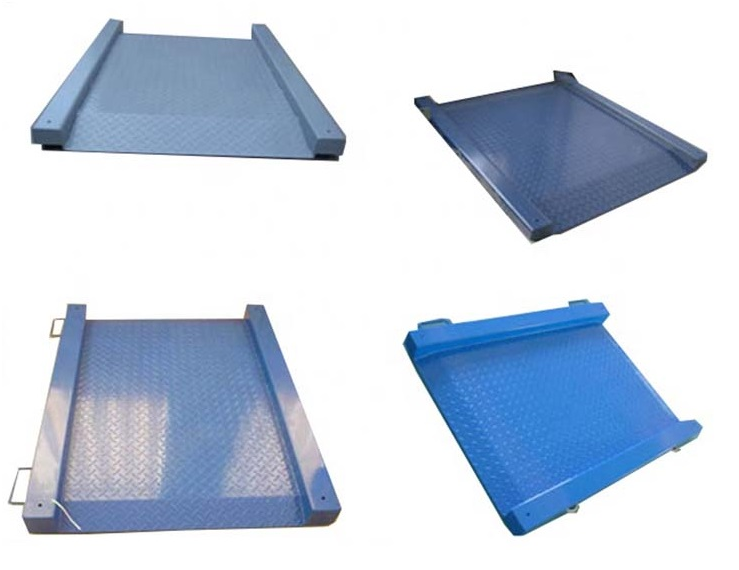

Floor Weighing Scale
WSF053-1
Floor weighing scale Engineered for corrosive, high-sanitation, and hazardous environments, the Saintbond Series floor weighing scale combines marine-grade carbon steel construction with industrial precision for lifelong reliability.
Quantity:
Floor weighing scale Engineered for corrosive, high-sanitation, and hazardous environments, the Saintbond Series floor weighing scale combines marine-grade carbon steel construction with industrial precision for lifelong reliability.
Technical Parameter:
| Model | Size | Capacity |
| (m) | (Ton) | |
| WSF053-1010 | 1.0X1.0m | 1~3t |
| WSF053-1212 | 1.2X1.2m | 1~3t |
| 5t | ||
| WSF053-1215 | 1.2x1.5m | 1~3t |
| 5t | ||
| WSF053-1515 | 1.5X1.5m | 1~3t |
| 5t | ||
| WSF053-1520 | 1.5X2m | 1~3t |
| 5t | ||
| WSF053-2020 | 2.0X2.0m | 1~3t |
| 5t | ||
| WSF053-2030 | 2.0X3.0m | 1~3t |
| 5t |
Floor weighing scale Built to Endure:
✅Full Welded steel Structure: Immune to rust, chemicals, and high-pressure washdowns (IP69K rated).
✅Hygienic Design: Seamless, radius-cornered deck eliminates bacterial traps;floor digital scale ideal for food, pharma, and labs.
✅Heavy-Duty Performance: Capacities 1,000–20,000 kg (2,200–44,000 lbs).
Floor weighing scale Smart Features:
✅Diamond-Tread Surface: Slip-resistant even when wet.
✅Intrinsically Safe Options: ATEX/IECEx-certified for Zone 1/21 hazardous areas.
✅Sealed Load Cells (IP68): Resist moisture, dust, and aggressive fluids.
✅Modular Connectivity: Plug-and-play RS232/485, Ethernet, 4-20mA outputs for PLC/SCADA integration.
Heavy duty platform scales Applications:
✅Food processing plants
✅Chemical facilities
✅Wastewater treatment
✅Offshore platforms
✅Pharmaceutical production
Heavy duty platform scales Description:
✅Low profile, with two ramps mild-steel structure, powder coated, sandblasting before powder-coated or 304 stainless steel structure.
✅5mm checker or flat top plate, U beams by thick modules
✅With OIML approved shear beam load cells, indicator is optional.
✅With junction box and cable, Ramp is optional
✅Be suitable for weighing suspending goods, fork-lift truck shoveling and manual transport, Unsuitable for pit-type installation.
✅The laundry floor scale product is with CE approved.
Where corrosion resistance, hygiene, and accuracy collide – trust Saintbond.
