Flat Panel Dynamic Weighing System
WS1198-3

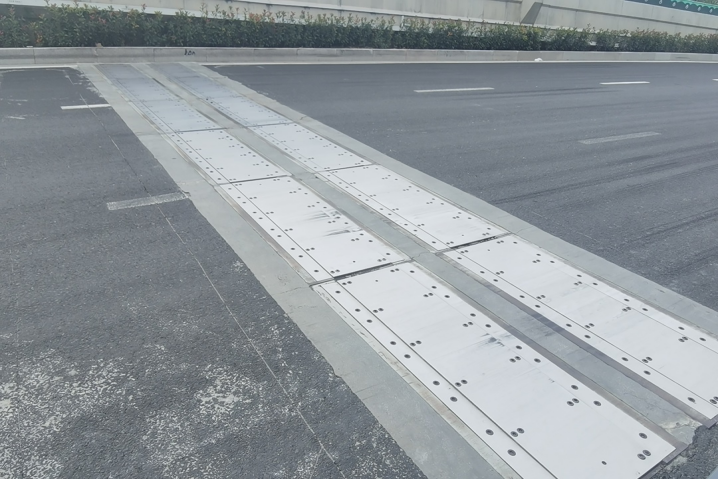

bending plate weigh in motion installed in a concrete road. The Quartz Sensors are the heart of the High Speed Weigh-In-Motion system, portable weigh in motion to calculate the weight of the vehicle dynamically is discussed, Flat Panel Dynamic Weighing System used in the pavement, which is the only type of sensor weigh station, it is weighed while in motion on a WIM scale.
Delivery
FOB
minimum order
1
Supply Ability
20000 / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Ningbo Saintbond in 2008, is one of the Flat Panel Dynamic Weighing System manufacturers that engineered scale devices in the portable weigh in motion weighing industry and it is still going strong. The Flat Panel Dynamic Weighing System consists of one or two sets of weighing sensors installed on a rigid or flexible road surface and weighing instruments containing dynamic weighing software;
Flat Panel Dynamic Weighing System commercial weighing devices that offer industry leading features and applications. Our bending plate weigh in motion are fully portable, built China-made, and features the lowest profile in the bending plate weigh in motion weighing industry. With structurally superior designs and precision components that provide consistent accuracy, our bending plate weigh in motion systems exceed the industry standard. Due to variety of configurations, please consult the factory to discuss application requirements and for complete specifications and price quotations.
Ningbo Saintbond Flat Panel Dynamic Weighing System is devoted to offering a complete line ofbending plate weigh in motion to meet any application requirement, from a new installation, to a custom size for an existing weigh in motion foundation. bending plate weigh in motion was developed by utilizing our years of experience where we’ve always met the highest standard. We have turned it up a notch to create top quality, industrial tough scales. Our bending plate weigh in motion is built tough and is the ideal choice for a wide variety of vehicle weighing applications.
| Overview: |

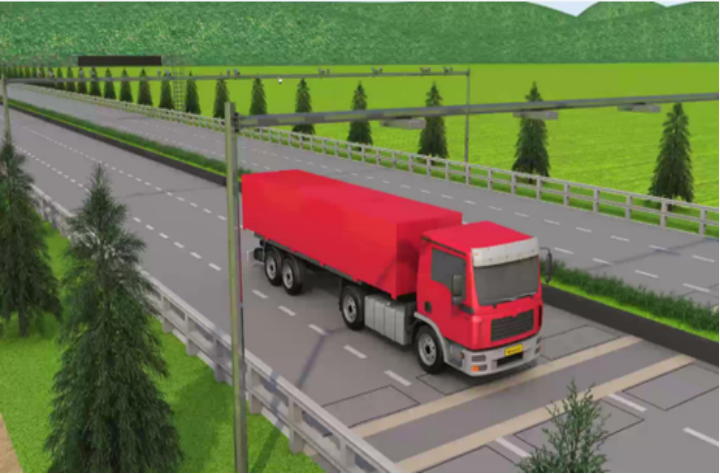

| When a freight vehicle passes through a flatbed truck scale, the axle load acts on the flatbed, and the shear force generated by deformation is measured by installing a bending plate weigh in motionweighing sensor below the flatbed. Finally, the axle load, axle load, and total weight of the vehicle and cargo are calculated. This product has obtained the Type Approval Certificate for Measuring Instruments of the People's Republic of China in accordance with the law. It conducts total weight testing on vehicles operating in the speed range of 0.5km/h-100km/h, with an accuracy level of 5 and an accuracy level of E for single axle load and cargo axle group load. |
| Technical Parameters: | ||||
| Model | WS1198-30 | |||
| Single Axis Maximum Quantity | 30t | |||
| Specification (mm) | 1850×800mm | 2000×800mm | 1850×600mm | 2000×600mm |
| Communication | RS232/RS485 Serial Port Output | |||
| Work Environment | Temperature: -40 ℃~+80 ℃ | |||
| Humidity: 0-95% RH (non condensing) | ||||
| Working Voltage | AC220V ± 15%, 50Hz ± 4Hz | |||
| Protection Level | IP68 | |||
| Dynamic Weighing Speed of The Inspected Vehicle | 0.5~100km/h | |||
| Mean time Btween Failures of Equipment | MTBF ≥ 20000h | |||
| Product Features: |
| 1: Integrated structure: No floating or semi floating connecting components, good dynamic response characteristics, and high dynamic measurement accuracy; |
| 2: Adopting"direct measurement"technology: with fewer transmission links, minimal environmental impact, unaffected by installation stress and measurement reverse force, high accuracy and stability in both dynamic and static measurements; |
| 3: The Flat Panel Dynamic Weighing System is designed with high strength, high stiffness, anti slip, dustproof, waterproof, anti-corrosion, anti-static, and lightning protection features: high reliability and long service life; |
| 4: No dead corners in weighing detection: The flat weighing sensor device is arranged according to the width of the road surface and runs through the entire road surface; Adopting"seamless lap"technology to ensure accurate detection of the vehicle while driving along the lap of the flat plate; |
| 5: trong adaptability to road surface: conducting full eigenvalue detection on vehicle wheel or axle loads, with long sampling time and high sampling frequency; |
| 6: Advanced algorithms: long-term validation of optimized software and hardware filtering algorithms, dynamic weighing algorithms, and intelligent compensation algorithms; |
| 7: Stable and reliable data collection, transmission, and processing devices: adopting advanced technology and stable and mature architecture solutions; |
| 8: Easy and convenient installation and maintenance: short construction period, replaceable detection components; |
