Explosion Proof Floor Scale
WSF001-EX
Explosion Proof Floor Scale: Safety Redefined
Engineered for hazardous environments, the Guardian EX explosion proof floor scale delivers uncompromised accuracy where sparks or heat could ignite flammable gases, vapors, or dust (Zone 0/1, 20/21). Certified to ATEX, IECEx, and UL standards, it’s the ultimate safeguard for chemical plants, refineries, grain silos, and pharmaceutical facilities.
Engineered for hazardous environments, the Guardian EX explosion proof floor scale delivers uncompromised accuracy where sparks or heat could ignite flammable gases, vapors, or dust (Zone 0/1, 20/21). Certified to ATEX, IECEx, and UL standards, it’s the ultimate safeguard for chemical plants, refineries, grain silos, and pharmaceutical facilities.
Quantity:
Explosion Proof Floor Scale: Safety Redefined
Engineered for hazardous environments, the Guardian EX explosion proof floor scale delivers uncompromised accuracy where sparks or heat could ignite flammable gases, vapors, or dust (Zone 0/1, 20/21). Certified to ATEX, IECEx, and UL standards, it’s the ultimate safeguard for chemical plants, refineries, grain silos, and pharmaceutical facilities.
Technical Parameter:
| ITEM | Dimension | Max. Cap. | Division | Platform height | N.W |
| (m×m) | (Tonne) | (kg) | (mm) | (kg) | |
| WSF001-Ex-1/2/3-1010 | 1×1m | 1/2/3t | 0.2/0.5/1 | 110 | 80 |
| WSF001-Ex-5-1010 | 1×1m | 5t | 1 | 110 | 90 |
| WSF001-Ex-1/2/3-1212 | 1.2×1.2m | 1/2/3t | 0.2/0.5/1 | 110 | 105 |
| WSF001-Ex-5-1212 | 1.2×1.2m | 5t | 1 | 110 | 115 |
| WSF001-Ex-1/2/3-1215 | 1.2×1.5m | 1/2/3t | 0.2/0.5/1 | 110 | 125 |
| WSF001-Ex-5-1215 | 1.2×1.5m | 5t | 1 | 110 | 140 |
| WSF001-Ex-1/2/3-1515 | 1.5×1.5m | 1/2/3t | 0.2/0.5/1 | 110 | 150 |
| WSF001-Ex-5-1515 | 1.5×1.5m | 5t | 1 | 110 | 170 |
Explosion proof floor scale Description:
◎Suitable for all kinds of explosive hazardous enviroments (except under mine);
◎Grade of accuracy:Ⅲ;
◎Analog or digital configurations are optional;
◎Three explosion-proof modes are all applicable;
Atex floor scales Features:
◎Checker plate platform, without frame, mild steel, robust, power coated；
◎4 load cell construction, 5m shielded cable supplied, metal-conduit cable optional；
◎Adjustable heavy duty rubber feet, optional ramps；
Atex floor scales Instrinsically Safe Indicator (stainless steel) features:
◎Instinct safe indicator;
◎The charge mode is same as mobile phone's;
◎You can either charge when it is a complete machine, or remove the instinct safe battery pack, and let the battery pack charge separately;
◎Charging port are taken to special treatment, even though the port be exposed, or short circuit happened, there is no risk at all;
◎AC and DC can exist at the same time. Avoid the traditional defect that when use AC, instinct safe battery pack must be removed, and when use DC, AC must be removed;
◎With simple correction, animal weighing function;
◎Low power consumption, long standby time(72 hours after full charge) ;
◎The indicator is LCD display with backlighting, it’s function is more powerful.
◎Explosion-proof sign: ExibIICT4//T5
Options:

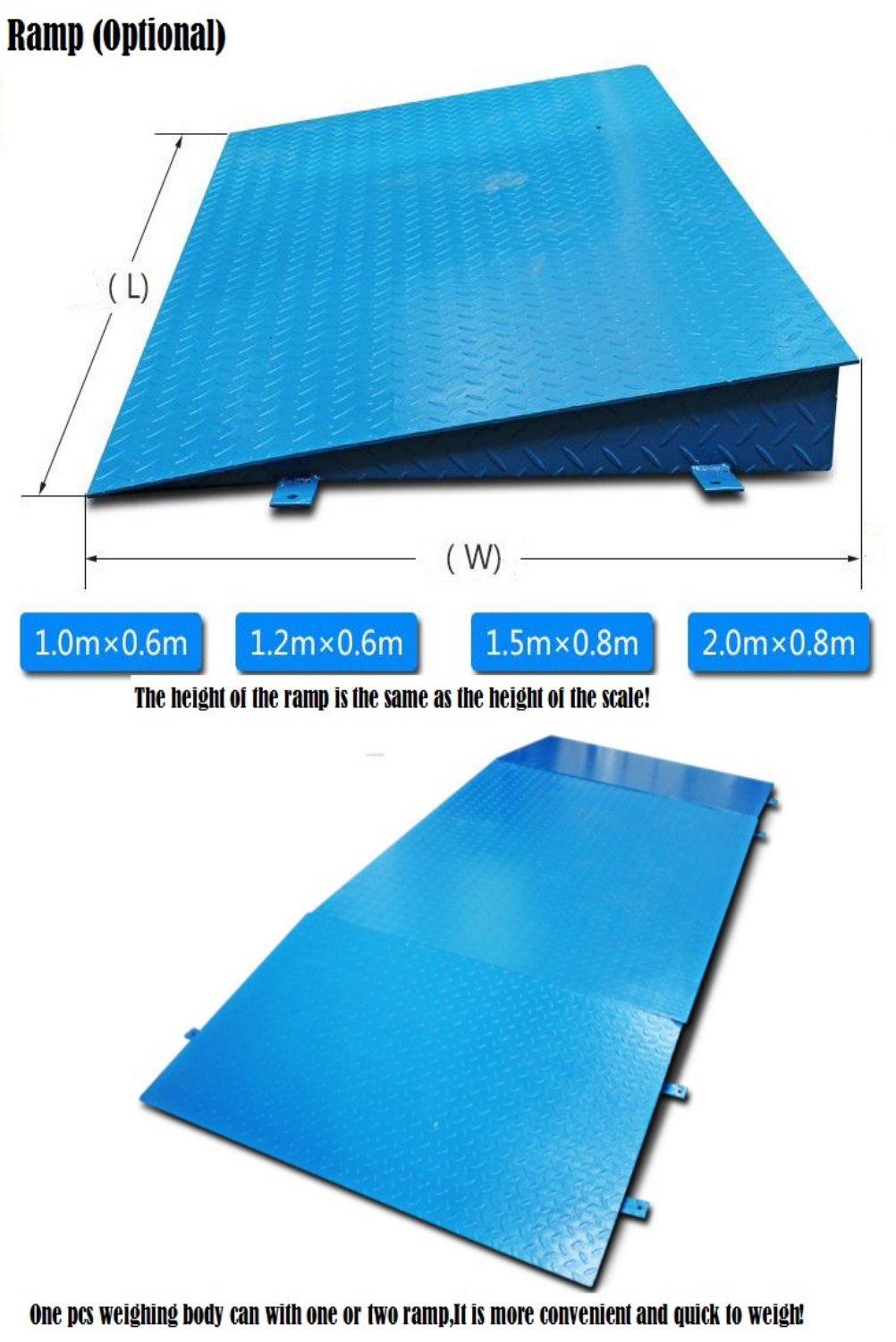

Ramp; Moveable Pole; customs size and design.
