Explosion-Proof Bench Scales
WS0100-Ex
Explosion-Proof Bench Scales – Designed for hazardous environments, these robust scales feature flameproof enclosures and anti-static components to prevent ignition. Explosion proof bench scales with high-precision load cells, they ensure accurate weighing in flammable or explosive atmospheres.Electronic bench scales Ideal for chemical, pharmaceutical, and industrial use. Certified to ATEX/IECEx standards for safety. Durable, reliable, and spark-proof.
Quantity:
Explosion-Proof Bench Scales – Designed for hazardous environments, these robust scales feature flameproof enclosures and anti-static components to prevent ignition. Explosion proof bench scales with high-precision load cells, they ensure accurate weighing in flammable or explosive atmospheres.Electronic bench scales Ideal for chemical, pharmaceutical, and industrial use. Certified to ATEX/IECEx standards for safety. Durable, reliable, and spark-proof. (explosion proof bench scales, Explosion-Proof Bench Scales, electronic bench scales )

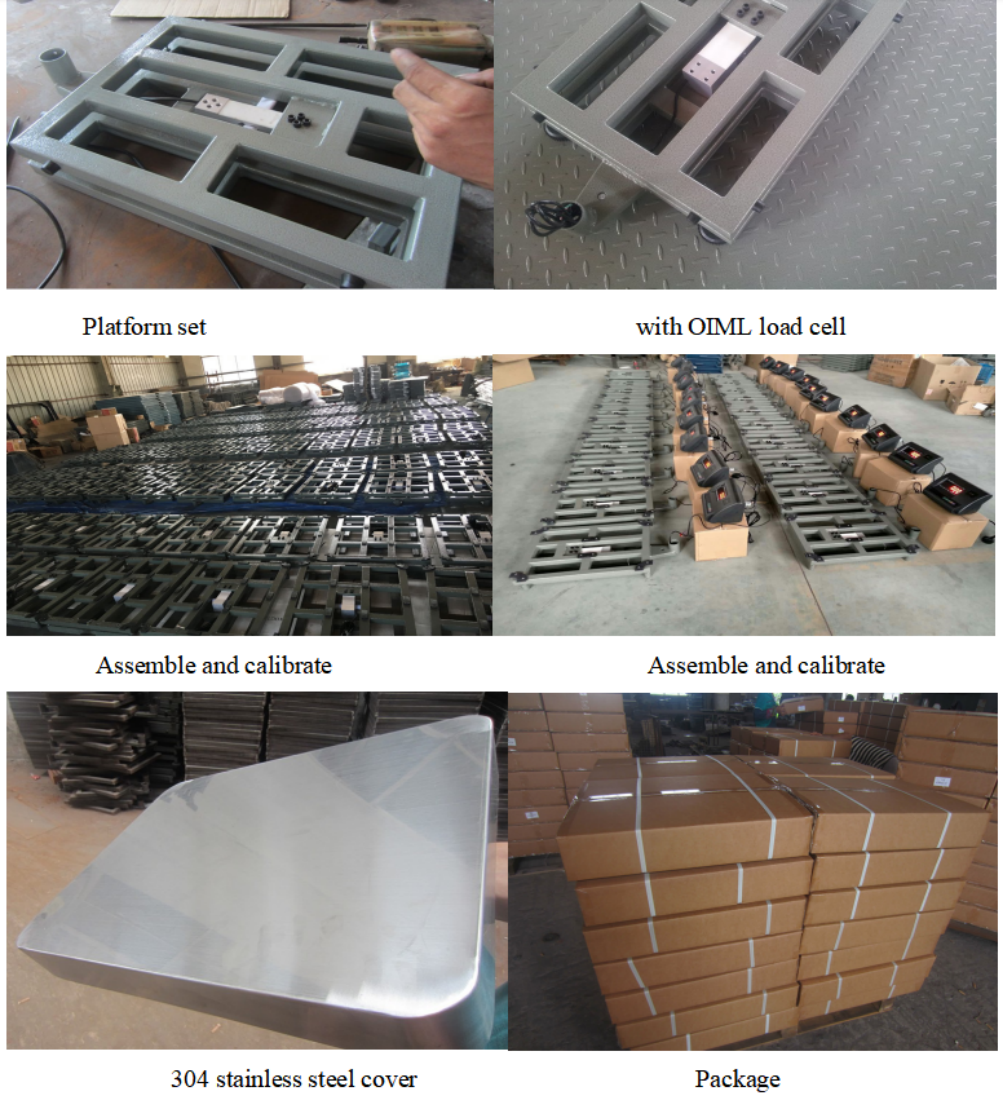

Note: 304 stainless steel cover--Rectangular or Round corner cover is optional.
Explosion-Proof Bench Scales Features:
◎Suitable for all kinds of explosive hazardous environments (except under mine)
◎Grade of accuracy: Ⅲ
◎Analog or digital configurations are optional
◎Normally it adopts instrinsically safe mode
◎Rectangular pipe mild steel welding structure;
◎Stainless-steel 304 platform (cover);
◎With OIML R60 approved load cells;
◎With bracket (mild steel) and column (Φ38mm stainless-steel tube) for the indicator;
◎Finishing: Painted or powder coated;
◎Different requirements on thickness of S.S. top plate are acceptable and can be customized.Top plate with round corner optional;
◎Accuracy class: Grade III;
Instrinsically Safe Indicator ( stainless steel) features:
◎Instinct safe indicator
◎The charge mode is same as mobile phone’s.
◎You can either charge when it is a complete machine, or remove the instinct safe battery pack, and let the battery pack charge separately.
◎Charging port are taken to special treatment, even though the port be exposed, or short circuit happened, there is no risk at all.
◎AC and DC can exist at the same time. Avoid the traditional defect that when use AC, instinct safe battery pack must be removed, and when use DC, AC must be removed.
◎With simple correction, animal weighing function
◎Low power consumption, long standby time(72 hours after full charge)
◎EX-9431 is LCD display with backlighting, it’s function is more powerful.
◎Explosion-proof sign: ExibIICT4//T5
Explosion-Proof Bench Scales Technical Parameter:
| Specification | Size | Max. cap | Div. | Height | Pole Height |
| (mm×mm) | (kg) | (g) | (mm) | (mm) | |
| WS0100-Ex-3040-30~150 | 300×400 | 30~150 | 2~10 | 118 | 400 |
| WS0100-Ex-4050-30~150 | 400×500 | 30~150 | 2~10 | 118 | 650 |
| WS0100-Ex-4560-30~300 | 450×600 | 30~300 | 2~20 | 140 | 650 |
| WS0100-Ex-4560-500/600 | 450×600 | 500/600 | 5~50 | 140 | 650 |
| WS0100-Ex-5060-60~600 | 500×600 | 60~600 | 5~50 | 140 | 700 |
| WS0100-Ex-6080-60~300 | 600×800 | 60~300 | 5~20 | 150 | 800 |
| WS0100-Ex-6080-600/1000 | 600×800 | 600~1000 | 50/100 | 170 | 800 |
