Dynamic Weighbridge
WS1110WD
Ningbo Saintbond is dynamic weighbridge Manufacturers and Suppliers, truck trailer scales are an advanced wireless, compact, portable axle weigher, ideal for maximising vehicle load, portable weigh pads are used to determine the individual axle weights and total gross weight of any type of vehicle.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( dynamic weighbridge, truck trailer scales, portable weigh pads dynamic weighbridge, truck trailer scales, portable weigh pads dynamic weighbridge, truck trailer scales, portable weigh pads dynamic weighbridge, truck trailer scales, portable weigh pads)
Stop being chained to a fixed location. In today's dynamic world, efficiency is measured by mobility and speed. Traditional platform scales are bulky, immobile, and impractical for on-the-spot weighing.
Stop being chained to a fixed location. In today's dynamic world, efficiency is measured by mobility and speed. Traditional platform scales are bulky, immobile, and impractical for on-the-spot weighing.
Introducing our Portable Weigh Pads—the modern, heavy-duty solution for accurate weighing wherever your work takes you. WS1110WD Portable Weigh Pads engineered for durability and simplicity, they transform any flat surface into an instant, reliable weighing station.
Portable Weigh Pads designed specifically for the transportation and logistics industry, these robust pads allow you to check the weight of each axle and the total gross vehicle weight right at your loading bay or depot.

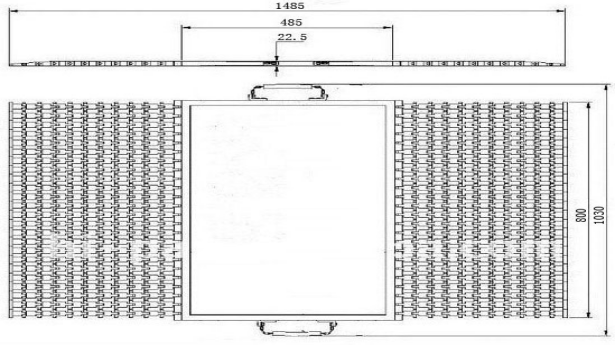

| WS1110WD Portable Weigh Pads Dimension: mm |
| WS1110WD Portable Weigh Pads Technical Specification: | |
| Rated Load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic Error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
| Static Comprehensive Error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated Output(Mv/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-Linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error On Corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero Balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation Voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended Voltage(V): 10 | Defend grade: IP66 |
| Dynamic Comprehensive Error(%F.S): | 1.5 (1~5km/h),3(5~10km/h) |
| Static Comprehensive Error(%F.S): | 0.10% |
| WS1110WD Portable Weigh Pads Wireless Specification: | |
| A/D Conversion Method | Σ-Δ 24bit |
| Input Signal Range | –19.5mV~19.5mV |
| Load Cell Excitation | DC 5V |
| Max. Connection Number Of Load Cell | 1~4 |
| Load Cell Connection Mode | 4 wire |
| Operating Temperature | -10°C~40 °C |
| Allowable Working Temperature | -40 °C ~70 ° C |
| Wireless Transmission Frequency | 430MHz to 470MHz |
| Wireless Transmission Distance | 100~300meters (In Open Place) |
| PC Software | Optional, Customizable |
WS1110WD Portable Weigh Pads Wireless Weighing Indicator: ( Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | ◎Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | ◎Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | ◎Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | ◎The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | ◎System non-linearity＜0.01%; | |
| Battery Life: | ≥50 hours | ◎Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | ◎Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | ◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | ◎Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
How Portable Weigh Pads Works:
✅ Position: Place one pad under each wheel or set of wheels on the same axle.
✅ Connect: Link all pads wirelessly to a single, easy-to-read digital indicator.
✅ Weigh: Get simultaneous, accurate readings for each axle and the total weight in seconds.
✅ Position: Place one pad under each wheel or set of wheels on the same axle.
✅ Connect: Link all pads wirelessly to a single, easy-to-read digital indicator.
✅ Weigh: Get simultaneous, accurate readings for each axle and the total weight in seconds.
