Double-Ended Shear Beam Load Cell
Double-Ended Shear Beam Load Cell also commonly known as a load cell for truck scale,load cell for truck scale, are designed for truck and rail scales. Multiple load cells are used in each installation. Our range includes alloy tool steel load cell for truck scale and stainless steel load cell for truck scale offered with environmental ratings up to IP68 suitable for demanding situations where water and dirt are common. Each truck load weight sensor for weigh bridge can be supplied individually or combined with our state of the art instrumentation for a complete weigh system.
Load cell for truck scale,truck load weight sensor ,Double-Ended Shear Beam Load Cell is a type of transducer that converts the force exerted by a vehicle’s weight into an electrical signal. This signal can then be processed and displayed as a weight value, allowing for the accurate determination of the vehicle’s load.

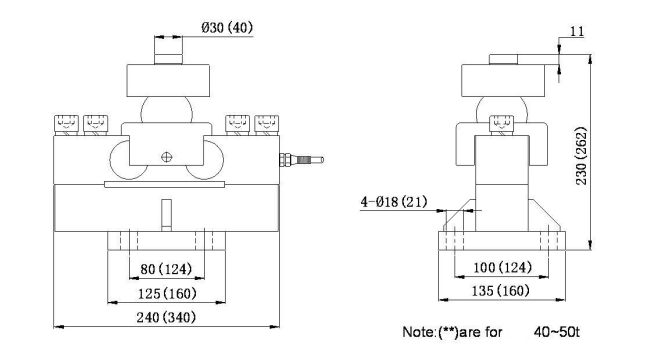

Dimention:mm
Technical Parameter:
| Rated Load: | 5/10/20/25/30/40/50t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150,120 (40~50t)%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300,200(40~50t)%F.S |
| Creep Error(30min): | ±0.01% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | Alloy/Stainless Steel |
| Input Resistance: | 750±5Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=13m |
| Output Resistance: | 703±2Ω,703±5 Ω(L≥15m) | Mode Of Connection: | Red(Input+),Black(Input-), |
| Green(Output+),White(Output-) |
