The Functions and Advantages of Weigh In Motion (WIM) System

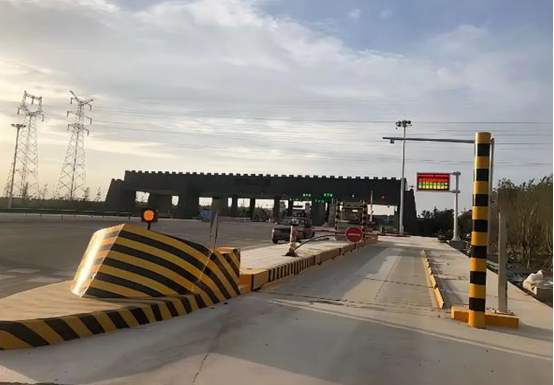

The high-speed Weigh In Motion (WIM) System is an advanced technology mainly used to accurately measure the weight of vehicles without stopping, and is widely used in fields such as highways, bridge entrance control, toll stations, logistics parks, etc. The following are its main functions and advantages:

Principle of Weigh In Motion (WIM) System for highways:

The dynamic weighing system on highways mainly measures the weight of vehicles by installing a certain number of weighing sensors on the driving lane. The sensor uses strain gauge technology, which requires the sensor to be fixed under the road surface and the weighing board to form a complete sensor system.

When the vehicle reaches the weighing plate, the pressure on the wheels is measured by the degree of deformation of the weighing plate. The weighing board will convert this pressure signal into an electrical signal and transmit it to the data acquisition device. In general, multiple sensors need to be installed to cover the center of gravity of the entire vehicle, making the weighing results more accurate.

Functions of the highway Weigh In Motion (WIM) System:

1: Vehicle weight measurement: It can quickly and accurately measure the overall weight of the vehicle, including axle weight and total weight, when the vehicle passes at normal driving speed.

2: License Plate Recognition and Tracking: Integrated license plate recognition technology can automatically capture and recognize the license plate information of passing vehicles, which is crucial for monitoring, law enforcement, and data management.

3: Data statistics and analysis: Collect and analyze data on vehicle weight, traffic flow, violations, etc., to provide a basis for traffic management and policy formulation.

Advantages of highway Weigh In Motion (WIM) System:

1: High precision: Advanced sensor technology and algorithms are used to ensure the accuracy of measurement results.

2: Efficiency: Weighing can be completed without stopping the vehicle, improving road traffic efficiency.

3: Multifunctionality: It integrates functions such as license plate recognition, traffic monitoring, and alarm, improving the comprehensive management capability of the system.

4: High reliability: Strong durability, able to work stably under various weather and traffic conditions.

5: Widely applicable fields: not only suitable for highway transportation, but also can play a role in bridge monitoring, over limit detection stations, source control of overloading, and other fields.

The Weigh In Motion (WIM) System for highways is an important transportation management device. Through reasonable sensor layout, data collection and processing, calculation formulas and other technical means, accurate measurement of vehicle weight can be achieved to ensure highway traffic safety. The high-speed Weigh In Motion (WIM) System plays an important role in ensuring traffic safety, improving logistics efficiency, and promoting legal transportation with its unique technological advantages.
