Axle Weight Scales
WS1101C-3
Advanced Axle Weight Scales / Portable truck weight scale: Achieve Precision, Compliance, and Efficiency with Our Advanced Axle Weight Scales
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
weighing pads for vehicles, axle weight scales, portable truck weight scale weighing pads for vehicles, axle weight scales, portable truck weight scale weighing pads for vehicles, axle weight scales, portable truck weight scale weighing pads for vehicles, axle weight scales, portable truck weight scale weighing pads for vehicles, axle weight scales, portable truck weight scale weighing pads for vehicles, axle weight scales, portable truck weight scale
Advanced Axle Weight Scales / Portable truck weight scale: Achieve Precision, Compliance, and Efficiency with Our Advanced Axle Weight Scales
Axle Weight Scales are highly specialized weighing systems designed to measure the load on each axle group of a stationary or slow-moving vehicle. Unlike gross vehicle weight scales, they provide a detailed breakdown of weight distribution across the vehicle's axles. This is critical for ensuring compliance with legal weight regulations, preventing road damage, and promoting safety.

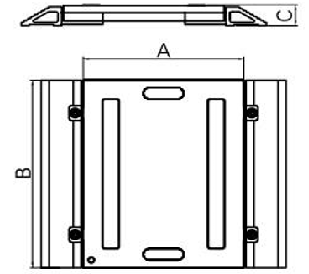

WS1101 Weighing Pads for Vehicles Dimension: mm
| Type | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weigh Pad) | (Each Pad) | |
| WS1101W | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg |
WS1101 Weighing Pads for Vehicles Technical Paramter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101 Weighing Pads for Vehicles Weighing Indicator: (Optional)
 |   | ||
| MWI03 Technical Parameters: ( Dynamic ) | MWI01 MWI02 Technical Parameter: ( Static ) | ||
| Full range temperature coefficient 5ppm/C; | Built in thermal printer; | ||
| Inner resolution 24 Bit; | Rechargeable battery; | ||
| Sampling Ratio 200 times/S; | LCD display with backlight; | ||
| Display refresher rate 12.5 times/s; | Over Load Protection and alarm; | ||
| System nonlinear <0.01%; | Portable & watertight case; | ||
| Power consumption (not including sensor): 70mA(under condition of no printing,and turning off the backlight), 1000mA(when print); | Indicators for measuring axle scale; | ||
| Power supply: with 6V/7AH lead-acid maintenance-free battery and also can be connected to. | Standard Version: 1-4 Channel; | ||
| There are tow types single channel and dual channel, and dual channel type can detect vehicle load coefficient; | 8-Channel Option; | ||
How Portable truck weight scale Works?
The weighing process is simple and efficient:
Position:The driver positions the vehicle so that its first axle set is on the scale platform.
First Measurement: The vehicle stops briefly, and the weight of the front axle(s) is recorded.
Sequential Weighing: The driver slowly moves forward, pausing as each subsequent axle or axle group is centered on the scale platform for individual measurement.
Total Calculation: The system automatically calculates and displays the weight per axle, axle group weights, and the total Gross Vehicle Weight (GVW).
The weighing process is simple and efficient:
Position:The driver positions the vehicle so that its first axle set is on the scale platform.
First Measurement: The vehicle stops briefly, and the weight of the front axle(s) is recorded.
Sequential Weighing: The driver slowly moves forward, pausing as each subsequent axle or axle group is centered on the scale platform for individual measurement.
Total Calculation: The system automatically calculates and displays the weight per axle, axle group weights, and the total Gross Vehicle Weight (GVW).
Why Choose Our Axle Weight Scales?
Regulatory Compliance: Directly supports adherence to federal and state bridge laws and weight mandates.
Asset Protection: Helps prevent premature wear and tear on vehicle tires, brakes, and suspensions caused by overloading.
Infrastructure Preservation: By promoting compliance, you contribute to reducing road damage and associated public maintenance costs.
Enhanced Safety: Overloaded vehicles have longer stopping distances and are harder to control. Our scales are a frontline tool for improving road safety.
Return on Investment: Avoid overweight fines, reduce vehicle maintenance costs, and improve operational logistics.
Regulatory Compliance: Directly supports adherence to federal and state bridge laws and weight mandates.
Asset Protection: Helps prevent premature wear and tear on vehicle tires, brakes, and suspensions caused by overloading.
Infrastructure Preservation: By promoting compliance, you contribute to reducing road damage and associated public maintenance costs.
Enhanced Safety: Overloaded vehicles have longer stopping distances and are harder to control. Our scales are a frontline tool for improving road safety.
Return on Investment: Avoid overweight fines, reduce vehicle maintenance costs, and improve operational logistics.
Ready to Optimize Your Weighing Operations? Contact us today for a personalized consultation and discover the perfect axle weight scale solution for your specific needs.
