Axle Weighing Systems
WS1131WD
Axle weighing systems designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, on board weighing systems for loaders are designed for creating static wheel and axle weighing and dynamic axle weighing stations, Ningbo saintbond Portable Weight Scale Pads for both static and dynamic applications.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
axle weighing systems, on board weighing systems for loaders, Portable Weight Scale Pads axle weighing systems, on board weighing systems for loaders, Portable Weight Scale Pads axle weighing systems, on board weighing systems for loaders, Portable Weight Scale Pads
Precision Weighing, Anywhere. Anytime.
Precision Weighing, Anywhere. Anytime.
Our Portable Weight Scale Pads represent the ultimate in flexibility and accuracy for vehicle weight measurement. Engineered for durability, speed, and simplicity, these robust Portable Weight Scale Pads pads provide legal-for-trade or high-accuracy operational data wherever you need it. Eliminate the need for expensive, fixed weigh stations and bring the power of precise weight analysis directly to your site, whether it's a construction yard, a logistics hub, or a roadside checkpoint.
The Portable Weight Scale Pads Core Value: Weigh any vehicle, in any location, in minutes.
Axle weighing systems / on board weighing systems for loaders is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles,Axle scales are an economical, adaptable and portable solution for vehicle and truck weighing.An axle scale measures the individual weight of a vehicle's axles and can provide the total weight of a vehicle. This type of on board weighing systems for loaders is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. On board weighing systems for loaders allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.

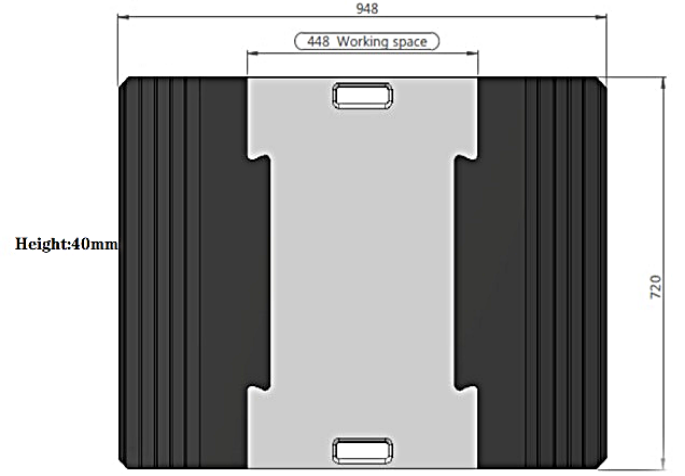

| WS1131WD Portable Weight Scale Pads Dimension:mm |
| Note: Both cable and spring tube are available on requests. |

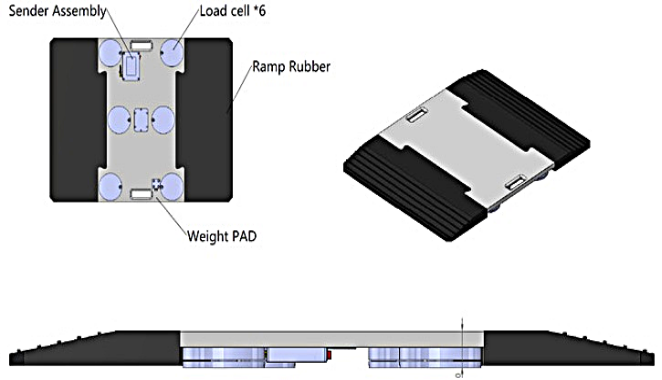

| WS1131WD Portable Weight Scale Pads Detail: |
WS1131WPortable Weight Scale Pads Technical Parameter:
| Dynamic error (%F.S): | 3~5 (5~10km/h) | Static error (%F.S): | 0.3~0.5 |
| Output Sensitivity: | 1±0.2m V/V | Temp., Compensated: | -10～+50℃ |
| Combined Error : | 0.2(%ld | Temp., Operating: | -40～+80℃ |
| Non-Linearity: | 0.2%ld | Excitation, Recommended (V): | 9～15DC |
| Repeatability: | 0.1%ld | Excitation, Max.(V): | 20DC |
| Input Resistance: | 3120±40Ω | Safe Overload: | 120%FS |
| Ouput Resistance: | 2800±10Ω | Ultimate Overload: | 150%FS |
| Insulation Resistance: | ≥5000(100VDC) | Protection Class: | IP66 |
| Zero Balance: | 4～10%FS | Cable Spec.: | 4-wire shield cable |
| Tem.Effect On Sensitivity: | 0.1%FS/10℃ | Max. Load For Single Point (t): | 10t |
| Temp.Effect On Zero: | 0.1%FS/10℃ | Rated Capacity (t): | 15t |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~100m (Optional) | ||
WS1131W Portable Weight Scale Pads Weighing Indicator: ( Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | ◎Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | ◎Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | ◎Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | ◎The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | ◎System non-linearity＜0.01%; | |
| Battery Life: | ≥50 hours | ◎Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | ◎Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | ◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | ◎Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
