Axle Weighing Scale
WS1101C-6
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
portable axle weigh scales, portable axle weighing scale, axle weighing scale portable axle weigh scales, portable axle weighing scale, axle weighing scale portable axle weigh scales, portable axle weighing scale, axle weighing scale
Ningbo Saintbond Portable Axle Weighing Scale
The Ningbo Saintbond Portable Axle Weighing Scale, also known as a axle weighing scale or portable axle weigh scales, is a revolutionary weighing solution. Its modular and highly portable design eliminates the need for expensive, permanent pit construction, allowing for the weighing of trucks and heavy vehicles anywhere, anytime. It is the ideal tool for road overload control, logistics, and industrial applications that demand maximum flexibility and efficiency.
The Ningbo Saintbond Portable Axle Weighing Scale, also known as a axle weighing scale or portable axle weigh scales, is a revolutionary weighing solution. Its modular and highly portable design eliminates the need for expensive, permanent pit construction, allowing for the weighing of trucks and heavy vehicles anywhere, anytime. It is the ideal tool for road overload control, logistics, and industrial applications that demand maximum flexibility and efficiency.

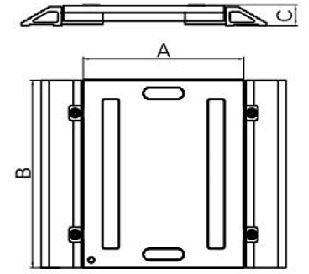

WS1101 Portable Axle Weigh Scales Dimension:mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Portable Axle Weigh Scales Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101 Portable Wheel Scales Weighing Indicator: ( Optional )
| Cable Version | Wireless Version | |||
| Static | MWI01 |  | WI280 |  |
| MWI02 |  | WI680II |  | |
| Dynamic | MWI03 |  | WI380 |  |
WS1101 Portable Axle Weigh Scales Primary Applications:
Road Overload Control (Core Application): For mobile weight enforcement inspections by traffic police and transport authorities.
Logistics & Transport Sector: Rapid weighing for load control, billing, and optimization in warehouses, ports, and distribution centers.
Mining & Construction Industries: Weight control of raw materials, aggregates, and products at quarries, mines, and construction sites.
Military & Emergency Response: Rapid weighing of supply vehicles in field operations or disaster relief situations.
Structural Safety Verification: Assessment of load-bearing capacity for warehouse floors, bridges, and parking structures.
Road Overload Control (Core Application): For mobile weight enforcement inspections by traffic police and transport authorities.
Logistics & Transport Sector: Rapid weighing for load control, billing, and optimization in warehouses, ports, and distribution centers.
Mining & Construction Industries: Weight control of raw materials, aggregates, and products at quarries, mines, and construction sites.
Military & Emergency Response: Rapid weighing of supply vehicles in field operations or disaster relief situations.
Structural Safety Verification: Assessment of load-bearing capacity for warehouse floors, bridges, and parking structures.
Ningbo Saintbond is recognized for delivering products with proven quality, reliable accuracy, and expert technical support. Choosing our portable scales means investing in a robust and efficient solution that streamlines your operations and protects your business.
The Ningbo Saintbond Portable Axle Weighing Scale is the ultimate solution for mobile weighing, combining portability, precision, and smart technology for effective weight control anywhere.

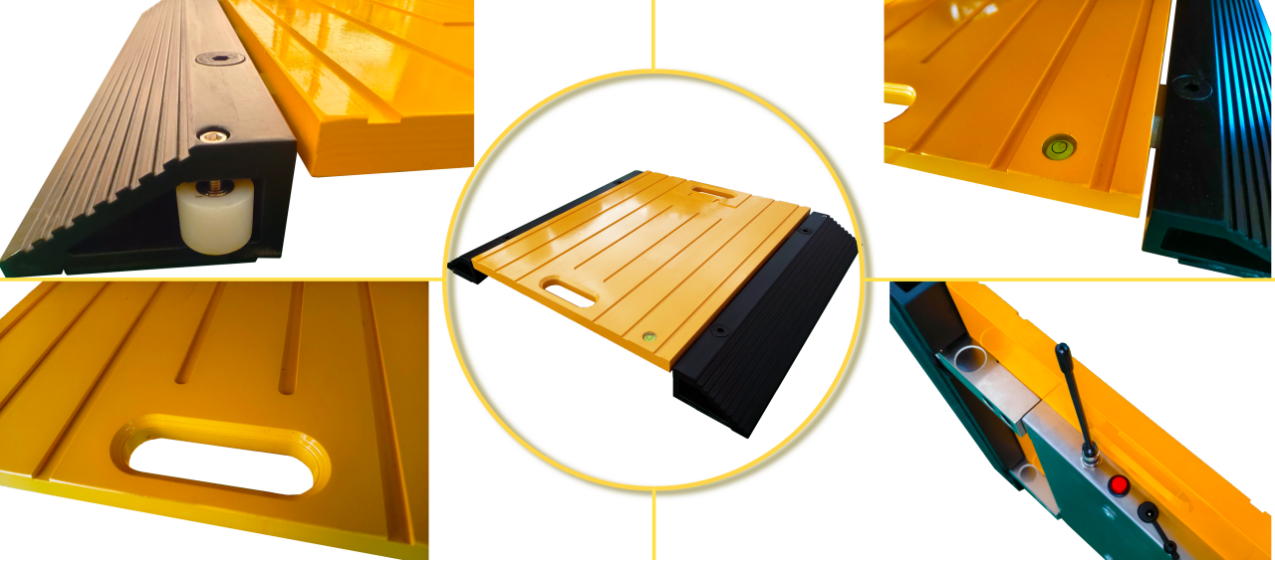

WS1101 Portable Axle Weigh Scales Product Detail Informations:
