Axle Weigh bridge
WS1101WD-5
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
axle weigh bridge, portable dot scales, portable vehicle weight scale axle weigh bridge, portable dot scales, portable vehicle weight scale axle weigh bridge, portable dot scales, portable vehicle weight scale
Ningbo Saintbond Portable Vehicle Weight Scale / axle weigh bridge
The Ningbo Saintbond Portable Vehicle Weight Scale /portable dot scales is a state-of-the-art modular weighing system designed for rapid deployment and high-precision measurement of trucks, heavy machinery, and commercial vehicles. Eliminating the need for permanent installation, it provides a flexible, cost-effective, and reliable weighing solution for diverse applications—from highway overload control to industrial logistics.
WS1101 Portable Vehicle Weight Scale Dimension:mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Portable Vehicle Weight Scale Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101 Portable Vehicle Weight Scale Weighing Indicator: ( Optional )
| Cable Version | Wireless Version | |||
| Static | MWI01 |  | WI280 |  |
| MWI02 |  | WI680II |  | |
| Dynamic | MWI03 |  | WI380 |  |
WS1101 Portable Vehicle Weight Scale Primary Applications:
Road Overload Enforcement: Mobile checkpoints for weight-limit compliance.
Logistics & Warehousing: Load verification, billing, and cargo optimization.
Mining & Construction: On-site weighing of raw materials and equipment.
Military & Emergency Response: Rapid deployment for field logistics.
Structural Safety Checks: Assessing load capacity of floors and bridges.
Road Overload Enforcement: Mobile checkpoints for weight-limit compliance.
Logistics & Warehousing: Load verification, billing, and cargo optimization.
Mining & Construction: On-site weighing of raw materials and equipment.
Military & Emergency Response: Rapid deployment for field logistics.
Structural Safety Checks: Assessing load capacity of floors and bridges.
WS1101 Portable Vehicle Weight Scale System Components:
þ Weighing pads (configurable: 4/6/8 /10/12/14/16units)
þ Central display & control unit
þ Interconnecting cables
þ Optional: Portable thermal printer, traffic cones, PDA with data management software
þ Weighing pads (configurable: 4/6/8 /10/12/14/16units)
þ Central display & control unit
þ Interconnecting cables
þ Optional: Portable thermal printer, traffic cones, PDA with data management software
Why Choose Ningbo Saintbond Portable Vehicle Weight Scale?
Ningbo Saintbond combines proven engineering, rigorous quality control, and dedicated technical support to deliver weighing solutions you can trust. Our portable scales enhance operational efficiency, ensure regulatory compliance, and protect your assets—anytime, anywhere.
Ningbo Saintbond combines proven engineering, rigorous quality control, and dedicated technical support to deliver weighing solutions you can trust. Our portable scales enhance operational efficiency, ensure regulatory compliance, and protect your assets—anytime, anywhere.
The Ningbo Saintbond Portable Vehicle Weight Scale /portable dot scales redefines mobility in weighing technology, offering precision, durability, and intelligence for modern industry and enforcement needs.

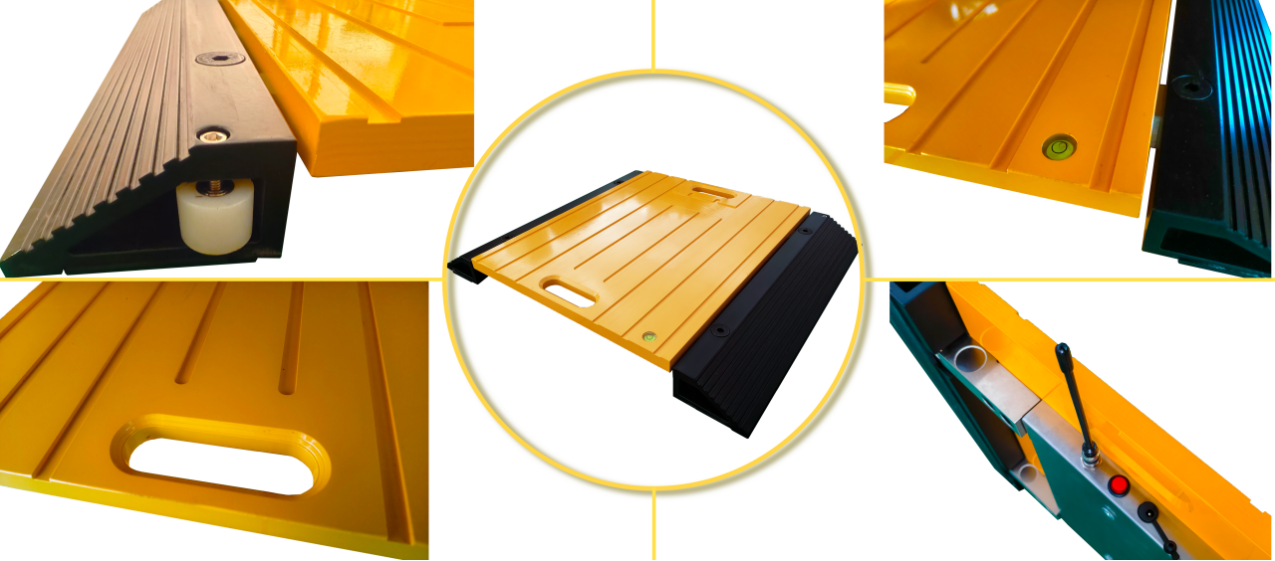

WS1101 Portable Vehicle Weight Scale Product Detail Informations:
