Axle Truck Scales
WS1110CD-3
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
30Day
Quantity:
axle truck scales, weight machine pads, portable weight scale for trucks axle truck scales, weight machine pads, portable weight scale for trucks axle truck scales, weight machine pads, portable weight scale for trucks axle truck scales, weight machine pads, portable weight scale for trucks

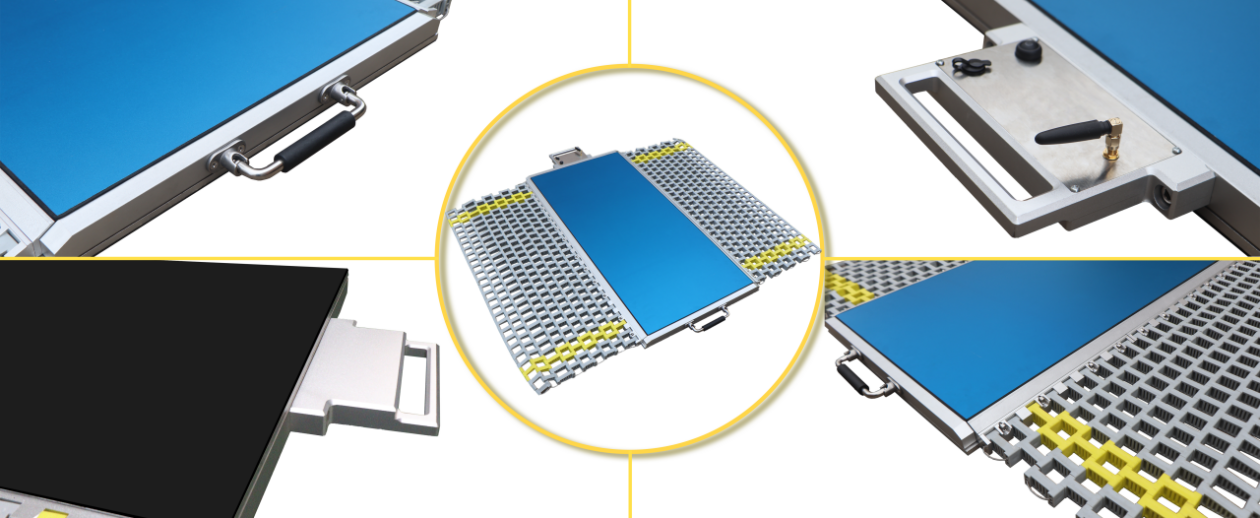

Ningbo Saintbond weight machine pads /portable weight scale for trucks: Weigh Anywhere, Anytime.
Revolutionize Your Weighing Operations with Unmatched Portability and Precision.
Revolutionize Your Weighing Operations with Unmatched Portability and Precision.
The Ningbo Saintbond Portable Weight Scale for Trucks /weight machine pads is a state-of-the-art weighing solution designed for the modern logistics, mining, construction, and agricultural industries. Engineered for durability, accuracy, and ultimate convenience, it eliminates the need for expensive, fixed weighbridges and allows you to perform legal-for-trade weight measurements directly at your site.

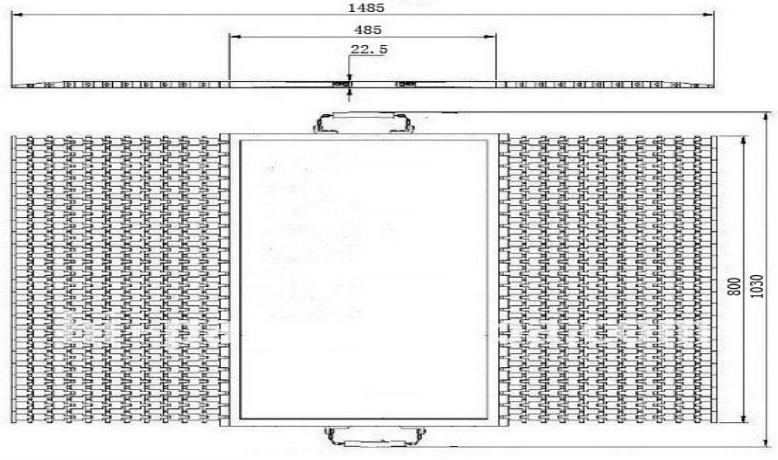

WS1110 Axle Truck Scales Dimension:mm
WS1110 Axle Truck Scales Technical Parameter:
| Rated load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic error (%F.S): 3~5 (5~10km/h) | Static error (%F.S):0.3~0.5 |
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended voltage(V): 10 | Defend grade: IP66 |
| Dynamic comprehensive error(%F.S): 3~5 (5~10km/h) | |

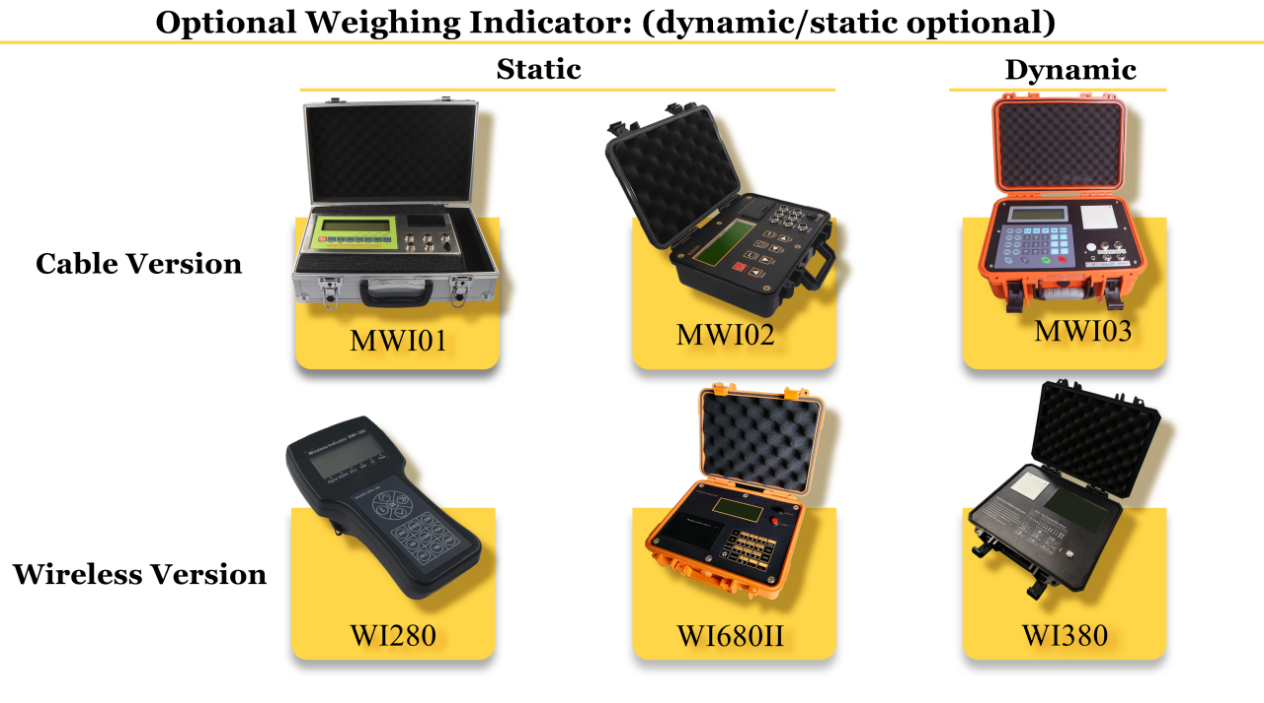

WS1101 Portable Wheel Scales Weighing Indicator: ( Optional )
WS1110 Axle Truck Scales Ideal Applications:
Logistics & Freight Companies: For verifying cargo weight before dispatch.
Waste & Recycling Centers: To weigh incoming and outgoing trucks.
Mining & Quarries: For measuring extracted materials.
Construction Sites: To weigh construction materials like sand, gravel, and concrete.
Agriculture & Farming: For weighing harvests, livestock, and feed.
Ports & Terminals: For efficient container and cargo management.
Logistics & Freight Companies: For verifying cargo weight before dispatch.
Waste & Recycling Centers: To weigh incoming and outgoing trucks.
Mining & Quarries: For measuring extracted materials.
Construction Sites: To weigh construction materials like sand, gravel, and concrete.
Agriculture & Farming: For weighing harvests, livestock, and feed.
Ports & Terminals: For efficient container and cargo management.
Why Choose Ningbo Saintbond Axle Truck Scales?
Ningbo Saintbond is a trusted manufacturer specializing in high-precision weighing solutions. We combine rigorous quality control with innovative engineering to deliver products that are reliable, accurate, and built to last. Our global network ensures professional sales support and after-sales service.
Ningbo Saintbond is a trusted manufacturer specializing in high-precision weighing solutions. We combine rigorous quality control with innovative engineering to deliver products that are reliable, accurate, and built to last. Our global network ensures professional sales support and after-sales service.
Ready to Take Control of Your Weighing Needs?
Contact us today to find the perfect portable scale model for your specific application and request a quote.
Contact us today to find the perfect portable scale model for your specific application and request a quote.
Ningbo Saintbond - Your Partner in Precision Weighing.
WS1110 Axle Truck Scales Product Details:
