Axle Scales
WS1101CD-3
Portable Truck Axle Scales: Weigh Anywhere, Weigh Accurately: The Ultimate Portable Truck Axle Scale Solution
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~20t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~20t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
portable truck axle scales, axle scales, axle scales for trucks portable truck axle scales, axle scales, axle scales for trucks portable truck axle scales, axle scales, axle scales for trucks portable truck axle scales, axle scales, axle scales for trucks portable truck axle scales, axle scales, axle scales for trucks portable truck axle scales, axle scales, axle scales for trucks
Portable Truck Axle Scales: Weigh Anywhere, Weigh Accurately: The Ultimate Portable Truck Axle Scale Solution
Portable Truck Axle Scales: Weigh Anywhere, Weigh Accurately: The Ultimate Portable Truck Axle Scale Solution
Our Portable Truck Axle Scales represent a breakthrough in weighing technology, offering unparalleled flexibility and efficiency for the modern transportation, logistics, and construction industries. Designed for professionals who require accurate weight data beyond the confines of a fixed weighbridge, these scales provide a complete, on-the-spot weighing solution that saves time, reduces costs, and ensures compliance.
Portable Truck Axle Scales is Ideal for law enforcement, aggregate industries, agriculture, recycling facilities, and logistics companies, our scales empower you to take the weighstation directly to the vehicle.

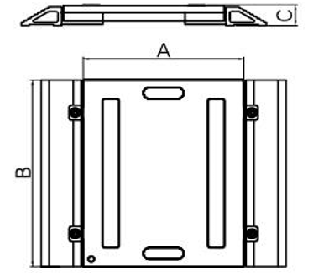

WS1101 Axle Scales for Trucks Dimension: mm
| Tipo | Dimensión (A×B×C) | Capacidad | Descripción |
| (mm) | ( Cada almohadilla de pesaje ) | ( Cada Almohadilla ) | |
| WS1101W | 300×400×56.5 | 500~8000Kilos | 4pcs LC348H Celda de carga,10m Cable, Capacidad:500/1000/1500Kilos |
| 400×500×56.5 | 1000~10000Kilos | 4pcs LC348H Celda de carga,10m Cable, Capacidad:1500/2500/3000/5000Kilos | |
| 450×700×56.5 | 5000~15000Kilos | 6pcs LC348H Celda de carga,10m Cable, Capacidad:5000/10000/15000Kilos | |
| 500×900×56.5 | 5000~20000Kilos | 8pcs LC348H Celda de carga,10m Cable, Capacidad:10000/15000/200000Kilos |
WS1101 Axle Scales for Trucks Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101 Axle Scales for Trucks Weighing Indicator: (Cable Type)
 |   | ||
| MWI03 Technical Parameters: ( Dynamic) | MWI01 MWI02 Technical Parameter: ( Static) | ||
| Full range temperature coefficient 5ppm/C; | Built in thermal printer; | ||
| Inner resolution 24 Bit; | Rechargeable battery; | ||
| Sampling Ratio 200 times/S; | LCD display with backlight; | ||
| Display refresher rate 12.5 times/s; | Over Load Protection and alarm; | ||
| System nonlinear <0.01%; | Portable & watertight case; | ||
| Power consumption (not including sensor): 70mA(under condition of no printing,and turning off the backlight), 1000mA(when print); | Indicators for measuring axle scale; | ||
| Power supply: with 6V/7AH lead-acid maintenance-free battery and also can be connected to. | Standard Version: 1-4 Channel; | ||
| There are tow types single channel and dual channel, and dual channel type can detect vehicle load coefficient; | 8-Channel Option; | ||
Why Choose Our Portable Truck Axle Scales?
Maximize Profitability: Eliminate costly trips to distant fixed weighbridges, reducing downtime and increasing operational efficiency.
Ensure Compliance: Prevent costly fines and vehicle downtime due to overweight violations.
Unmatched Versatility: A single investment serves multiple locations and applications.
Durability You Can Trust: Engineered for minimal maintenance and a long service life.
Complete Turnkey Solution: We provide everything you need—scales, indicators, software, and accessories—from a single, trusted supplier.
Maximize Profitability: Eliminate costly trips to distant fixed weighbridges, reducing downtime and increasing operational efficiency.
Ensure Compliance: Prevent costly fines and vehicle downtime due to overweight violations.
Unmatched Versatility: A single investment serves multiple locations and applications.
Durability You Can Trust: Engineered for minimal maintenance and a long service life.
Complete Turnkey Solution: We provide everything you need—scales, indicators, software, and accessories—from a single, trusted supplier.
Don't let a fixed location limit your weighing capabilities. Our Portable Truck Axle Scales give you the freedom to weigh anything, anywhere, with confidence and precision. Transform your operations, enhance your profitability, and stay compliant with the most flexible weighing solution on the market.
Contact us today for a personalized demonstration and quote!
