Axle Load Pad
WS1110-6
An Axle Load Pad, also known as a portable weighbridge pads or weight scale pad, is a robust, portable platform engineered to distribute heavy, concentrated loads from vehicles or machinery over a wider area. By significantly reducing ground pressure, they prevent damage to sensitive surfaces like asphalt, concrete, pavements, and unstable terrain, while also enhancing worksite safety and stability.
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5~30t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5~30t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
20-40Day
Quantity:
axle load pad, portable weighbridge pads, weight scale pad axle load pad, portable weighbridge pads, weight scale pad axle load pad, portable weighbridge pads, weight scale pad axle load pad, portable weighbridge pads, weight scale pad axle load pad, portable weighbridge pads, weight scale pad axle load pad, portable weighbridge pads, weight scale pad
Axle Load Pads: Ground Protection and Load Distribution Solutions
Axle Load Pads: Ground Protection and Load Distribution Solutions
An Axle Load Pad, also known as a portable weighbridge pads or weight scale pad, is a robust, portable platform engineered to distribute heavy, concentrated loads from vehicles or machinery over a wider area. By significantly reducing ground pressure, they prevent damage to sensitive surfaces like asphalt, concrete, pavements, and unstable terrain, while also enhancing worksite safety and stability.
Saintbond specializes in the design and production of high-performance axle load pads for over 20 years, offering both standard and custom (OEM/ODM) solutions to meet your specific requirements.

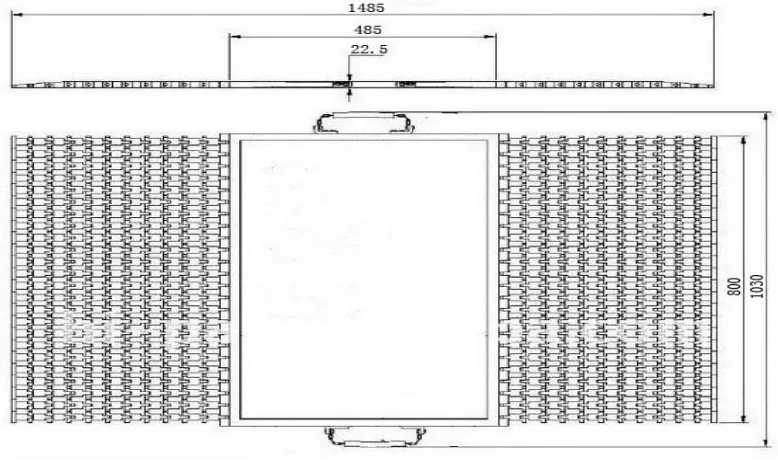

WS1110 Weight Scale Pad Dimension: mm
WS1110 Weight Scale Pad Technical Parameter:
| Rated load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic error (%F.S): 3~5 (5~10km/h) | Static error (%F.S):0.3~0.5 |
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended voltage(V): 10 | Defend grade: IP66 |
| Dynamic comprehensive error(%F.S): 3~5 (5~10km/h) | |
WS1110 Weight Scale Pad Key Features & Benefits:
Superior Load Distribution:Effectively spreads point loads from outriggers, axles, or crawler tracks to prevent cracking, rutting, and structural damage to underlying surfaces.
Exceptional Durability: Manufactured from high-strength materials (such as polyurethane or composite polymers) that are resistant to impact, abrasion, weathering, oils, and chemicals.
Lightweight & Portable: Despite their strength, our pads are designed to be lightweight and often feature handling holes or slots, allowing for easy manual movement and repositioning by a small crew.
Enhanced Safety: Provides a stable and level base for heavy equipment like cranes, piling rigs, and concrete pumps, reducing the risk of tipping or sinking. Non-slip surfaces ensure secure footing.
Surface Protection: Protects valuable and delicate surfaces such as finished floors, bridges, roads, and landscaping from costly repairs and restoration.
Long Service Life & Low Maintenance: Engineered for longevity in harsh conditions. They require no maintenance, are easy to clean, and do not rot or corrode.
Modular Design: Many models can be interlocked to create larger, continuous stable platforms for larger equipment or temporary roadways.
Superior Load Distribution:Effectively spreads point loads from outriggers, axles, or crawler tracks to prevent cracking, rutting, and structural damage to underlying surfaces.
Exceptional Durability: Manufactured from high-strength materials (such as polyurethane or composite polymers) that are resistant to impact, abrasion, weathering, oils, and chemicals.
Lightweight & Portable: Despite their strength, our pads are designed to be lightweight and often feature handling holes or slots, allowing for easy manual movement and repositioning by a small crew.
Enhanced Safety: Provides a stable and level base for heavy equipment like cranes, piling rigs, and concrete pumps, reducing the risk of tipping or sinking. Non-slip surfaces ensure secure footing.
Surface Protection: Protects valuable and delicate surfaces such as finished floors, bridges, roads, and landscaping from costly repairs and restoration.
Long Service Life & Low Maintenance: Engineered for longevity in harsh conditions. They require no maintenance, are easy to clean, and do not rot or corrode.
Modular Design: Many models can be interlocked to create larger, continuous stable platforms for larger equipment or temporary roadways.
WS1110 Weight Scale Pad Applications:
Construction Sites: For crane and piling rig outriggers, concrete boom pumps, and heavy-duty vehicle access.
Utility & Infrastructure Work: Protecting roads and bridges during maintenance by utility trucks and boring equipment.
Event Staging: Creating stable bases for temporary structures like stages, lighting towers, and heavy vehicles on grass or paved areas.
Oil & Gas Industry: Providing stable working platforms for heavy machinery on refinery floors and unstable ground.
Airport & Logistics: Supporting ground support equipment and protecting tarmac and warehouse floors.
Emergency Services: Creating instant stable ground for rescue vehicles in disaster areas.
Construction Sites: For crane and piling rig outriggers, concrete boom pumps, and heavy-duty vehicle access.
Utility & Infrastructure Work: Protecting roads and bridges during maintenance by utility trucks and boring equipment.
Event Staging: Creating stable bases for temporary structures like stages, lighting towers, and heavy vehicles on grass or paved areas.
Oil & Gas Industry: Providing stable working platforms for heavy machinery on refinery floors and unstable ground.
Airport & Logistics: Supporting ground support equipment and protecting tarmac and warehouse floors.
Emergency Services: Creating instant stable ground for rescue vehicles in disaster areas.
Why Choose Saintbond Axle Load Pads?
20+ Years of Expertise: Deep industry knowledge in designing effective ground protection solutions.
Proven Quality & Reliability: Our pads are built to perform in the most demanding environments.
Custom OEM/ODM Services: We can tailor the size, shape, material, and load capacity to perfectly match your unique application and machinery.
Cost-Effective:Protects your assets and project sites from expensive damage, providing an excellent return on investment.
20+ Years of Expertise: Deep industry knowledge in designing effective ground protection solutions.
Proven Quality & Reliability: Our pads are built to perform in the most demanding environments.
Custom OEM/ODM Services: We can tailor the size, shape, material, and load capacity to perfectly match your unique application and machinery.
Cost-Effective:Protects your assets and project sites from expensive damage, providing an excellent return on investment.
Contact us today to discuss your project needs and request a quotation! We are ready to provide you with the perfect axle load pad solution.
