Aircraft Weight Scales
WS1131W
Ningbo saintbond aircraft weight scales for both static and dynamic applications, portable vehicle weight scales axle wireless pads designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, axle weighbridge are designed for creating static wheel and axle weighing and dynamic axle weighing stations.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
aircraft weight scales, portable vehicle weight scales, axle weighbridge aircraft weight scales, portable vehicle weight scales, axle weighbridge aircraft weight scales, portable vehicle weight scales, axle weighbridge
Precision Weighing, Anywhere. Anytime.
Precision Weighing, Anywhere. Anytime.
Our portable vehicle weight scales represent the ultimate in flexibility and accuracy for vehicle weight measurement. Engineered for durability, speed, and simplicity, these robust portable vehicle weight scales weigh pads provide legal-for-trade or high-accuracy operational data wherever you need it. Eliminate the need for expensive, fixed weigh stations and bring the power of precise weight analysis directly to your site, whether it's a construction yard, a logistics hub, or a roadside checkpoint.
The portable vehicle weight scales Core Value: Weigh any vehicle, in any location, in minutes.
Ningbo Saintbond is the world's largest manufacturer of aircraft weight scales, portable vehicle weight scales, axle weighbridge in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and axle weighbridge that provide essential features for multiple industries.
Axle scale is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles, aircraft weight scales are an economical, adaptable and portable solution for vehicle and truck weighing.An portable vehicle weight scales measures the individual weight of a vehicle’s axles and can provide the total weight of a vehicle. This type of portable vehicle weight scales is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. Portable vehicle weight scales allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.

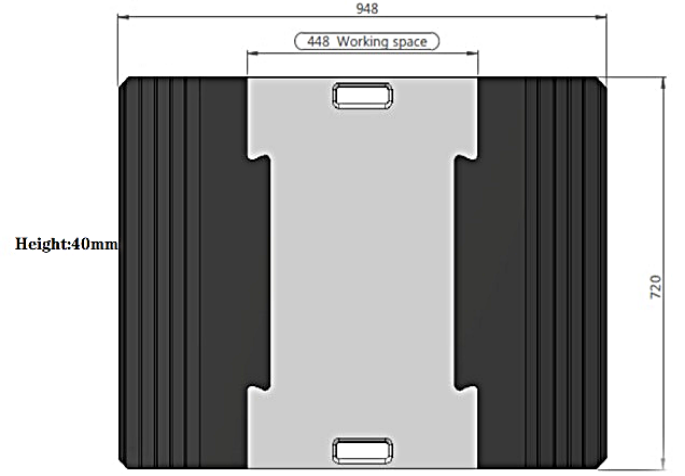

| WS1131W Portable Vehicle Weight Scales Dimension:mm |
| Note: Both cable and spring tube are available on requests. |

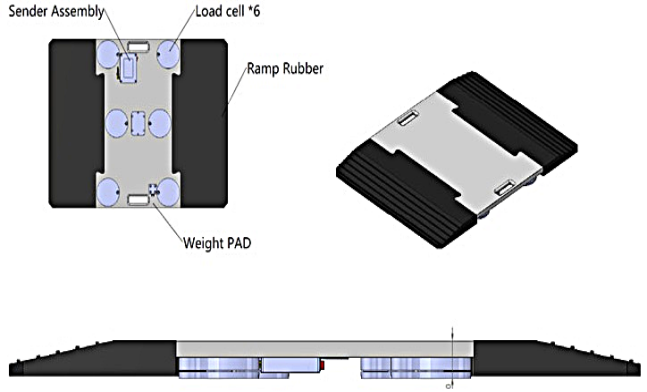

| WS1131W Portable Vehicle Weight Scales Product Detail: |
WS1131W Portable Vehicle Weight Scales Technical Parameter:
| Dynamic error (%F.S): | 3~5 (5~10km/h) | Static error (%F.S): | 0.3~0.5 |
| Output Sensitivity: | 1±0.2m V/V | Temp., Compensated: | -10～+50℃ |
| Combined Error : | 0.2(%ld | Temp., Operating: | -40～+80℃ |
| Non-Linearity: | 0.2%ld | Excitation, Recommended (V): | 9～15DC |
| Repeatability: | 0.1%ld | Excitation, Max.(V): | 20DC |
| Input Resistance: | 3120±40Ω | Safe Overload: | 120%FS |
| Ouput Resistance: | 2800±10Ω | Ultimate Overload: | 150%FS |
| Insulation Resistance: | ≥5000(100VDC) | Protection Class: | IP66 |
| Zero Balance: | 4～10%FS | Cable Spec.: | 4-wire shield cable |
| Tem.Effect On Sensitivity: | 0.1%FS/10℃ | Max. Load For Single Point (t): | 10t |
| Temp.Effect On Zero: | 0.1%FS/10℃ | Rated Capacity (t): | 15t |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~100m (Optional) | ||
WS1131W Truck Weight Wireless Scale System Weighing Indicator: ( Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | ◎Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | ◎Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | ◎Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | ◎The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | ◎System non-linearity＜0.01%; | |
| Battery Life: | ≥50 hours | ◎Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | ◎Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | ◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | ◎Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
